RAYBESTOS 680271 Part Description
Manufacturer
Product Description

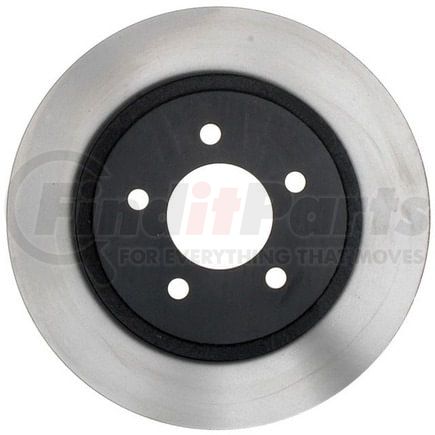

Raybestos Specialty - Truck Brake Rotor
Application Summary
2010-2005 Ford Escape Rear, 2009-2005 Mercury Mariner Rear, 2008,2006-2005 Mazda Tribute Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680271 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.433 IN |
| Discard Thickness | 11 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 11.885 IN |
| Outside Diameter | 301.9 MM |
| Overall Height | 2.2 IN |
| Overall Height | 55.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352273180 |
RAYBESTOS 680271 Cross References
| Brand | Part Number |
|---|---|
| 801667MM, 829352273180 | |
| ADVANCE AUTO PARTS | YH145566, YH145566C, YH145566P |
| ATE BRAKE PRODUCTS | 412181 |
| AUTOPARTSOURCE | 492615 |
| AUTOXTRA | 80680271, AX54122 |
| AUTOZONE | 54122, 54122DG |
| BENDIX | 145566 |
| BOSCH | 20010434 |
| BRAKEBEST | 20010434, 680271, 680271FZN, 680271R, 680271RGS |
| BREMBO | 27402, 08.B412.11 |
| CENTRIC | 120.65108, 121.65108, 126.65108CSL, 126.65108CSR, 126.65108SL, 126.65108SR, 128.65108CL, 128.65108CR, 128.65108L, 128.65108R, 320.65108, 321.65108 |
| Casting Numbers | 211660-C, 326212, 5L842C026 |
| Centric Parts | 120.65108, 121.65108, 126.65108CSL, 126.65108CSR, 126.65108SL, 126.65108SR, 128.65108CL, 128.65108CR, 128.65108L, 128.65108R, 320.65108, 321.65108 |
| DURA CORP | BR54122, BR5412202 |
| DuraGo | BR54122, BR5412202 |
| FORD | 5L8Z2C026AA, 5L8Z2C026BA |
| MAGMA PRODUCTS | PSR205221 |
| MAZDA | EF9126251, EF9126251A, EFTT26251 |
| MIGHTY DISTRIBUTING SYSTEM | 54122 |
| MONROE BRAKES | BD126120 |
| MOTORCRAFT | BRR132 |
| Motorcraft | NBRR101 |
| NAPA BRAKES | TSR9561 |
| NEOTEK | 1071040GF |
| NEWTEK AUTOMOTIVE | 54122 |
| Newtek Automotive USA | 54122 |
| POWERSTOP | AR85104EVC |
| PROMAX | 14-54122 |
| PRONTO | BR54122 |
| QUALIS | 54122 |
| QUALITY BRAND | Q4187 |
| TopNotch | TN680271GEO |
| UAP | 54122 |
| Ultra Brake | 54217 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51672 |
| WABCO | PS126120 |
| WABCO - Archived | PS126120 |
| WAGNER | BD126120E, BD126120 |
| WAGNER BRAKE | BD126120, BD126120E |
| WINHERE | 661644 |
| WORLDPAC | 1407-23961, 1427-731982 |
RAYBESTOS 680271 Fits Vehicles
- Mercury Mariner (2005-2009)
- Mazda Tribute (2005-2006, 2008)
- Ford Escape (2005-2010)
