(888) 312-8812 Login SignupRAYBESTOS 980113 Raybestos Specialty - Street Performance Brake Rotor
$6349
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Sep 4
RAYBESTOS 980113 Part Description
Manufacturer
Product Description

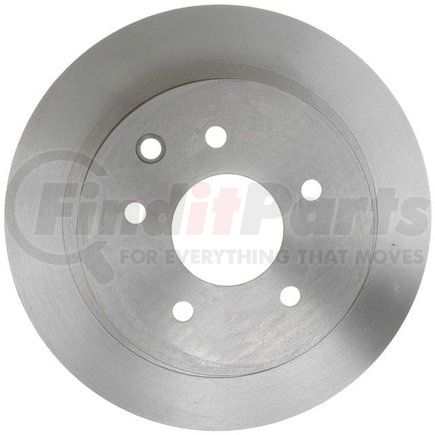

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2020-2008 Nissan Rogue Rear, 2022-2017 Nissan Rogue Sport Rear, 2023-2011 Nissan LEAF Rear, 2015-2014 Nissan Rogue Select Rear, 2005-2003 INFINITI G35 Rear, 2017-2014 Nissan Juke Rear, 2005-2003 Nissan 350Z Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980113 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.7 IN |
| Center Hole Diameter | 68.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.6 IN |
| Discard Thickness | 14.0 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.6 IN |
| Nominal Thickness | 16.0 MM |
| Outside Diameter | 11.5 IN |
| Outside Diameter | 292.0 MM |
| Overall Height | 2.4 IN |
| Overall Height | 62.0 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Inside Diameter | 8.4 IN |
| Inside Diameter | 213.0 MM |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 291.8 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 5.4 |
| Weight [cntrc] Lbs | 12.0 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352226315 |
RAYBESTOS 980113 Cross References
| Brand | Part Number |
|---|---|
| 78210123, 829352226315 | |
| ADVANCE AUTO PARTS | N1000141025APO, YH145536C, YH145536P |
| ATE BRAKE PRODUCTS | 416119 |
| AUTOPARTSOURCE | 576015 |
| AUTOXTRA | 80980113, AX31349, AX31387 |
| AUTOZONE | 31349, 31349DG |
| AutoZone | 31349DL |
| Autoxtra | AX31349P, AX31387P |
| BENDIX | 145536 |
| BOSCH | 40011061 |
| BRAKEBEST | 35630, 40011061, 980113, 980113FZN, 980113R, 980113RGS |
| BREMBO | 25842, 09.8969.21 |
| CENTRIC | 120.42077, 120.42077CRY, 121.42077, 125.42077, 125.42077CRY, 125.42079CRY, 126.42077CSL, 126.42077CSR, 126.42077SL, 126.42077SR, 127.42077CL, 127.42077CR, 127.42077L, 127.42077R, 128.42077CL, 128.42077CR, 128.42077L, 128.42077R, 227.42077L, 227.42077R, 320.42077, 321.42077 |
| Casting Numbers | 326176 |
| Centric Parts | 120.42077, 120.42077CRY, 121.42077, 125.42077, 125.42077CRY, 125.42079CRY, 126.42077CSL, 126.42077CSR, 126.42077SL, 126.42077SR, 127.42077CL, 127.42077CR, 127.42077L, 127.42077R, 128.42077CL, 128.42077CR, 128.42077L, 128.42077R, 227.42077L, 227.42077R, 320.42077, 321.42077 |
| DATSUN/NISSAN | 432063NF0A, 432064BA0A, 432064BT0B, 432064BT0C, 432065HA0A, 432062NF0A, 432068H305, 432068H700, 432068H701, 432068H702 |
| DURA CORP | BR31349, BR3134902 |
| DuraGo | 900540, BR31349, BR3134902, BR900540, BR31349-02 |
| MAGMA PRODUCTS | PSR425093 |
| MIGHTY DISTRIBUTING SYSTEM | 31349 |
| MONROE BRAKES | BD126093 |
| N/A | 120.42079 |
| NAPA BRAKES | SDK6169, TSR574 |
| NEOTEK | 106167GF |
| NEWTEK AUTOMOTIVE | 31349 |
| Newtek Automotive USA | 31349 |
| Nissan | 432062NF0A, 432063NF0A, 432064BA0A, 432064BT0B, 432064BT0C, 432065HA0A, 432068H305, 432068H700, 432068H701, 432068H702, 432066RR0A |
| PILENGA | V888 |
| POWERSTOP | JBR1106EVC |
| PROMAX | 14-31349, 20-31349 |
| PRONTO | BR31349 |
| QUALIS | 31349 |
| RENAULT | 432064CL0A |
| TRW | 4745 |
| TopNotch | TN980113GEO |
| UAP | 2031349, 31349 |
| Ultra Brake | NI-486 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51561 |
| WABCO | PS126093 |
| WABCO - Archived | PS126093 |
| WAGNER | BD126093, BD126093E |
| WAGNER BRAKE | BD126093, BD126093E |
| WINHERE | 6620313 |
| WORLDPAC | 1407-78802, 1427-731736 |
RAYBESTOS 980113 Fits Vehicles
- Renault Koleos (2009-2016, 2018)
- Nissan Qashqai (2017-2019)
- Nissan Rogue Sport (2017-2022)
- Nissan Rogue Select (2014-2015)
- Nissan Juke (2014-2017)
- Nissan LEAF (2011-2025)
- Nissan Rogue (2008-2020)
- Nissan X-Trail (2002-2016, 2018)
- INFINITI G35 (2003-2005)
- Nissan 350Z (2003-2005)
