WAGNER BD126093E Wagner Brake BD126093E Disc Brake Rotor

★★★★★ (0)

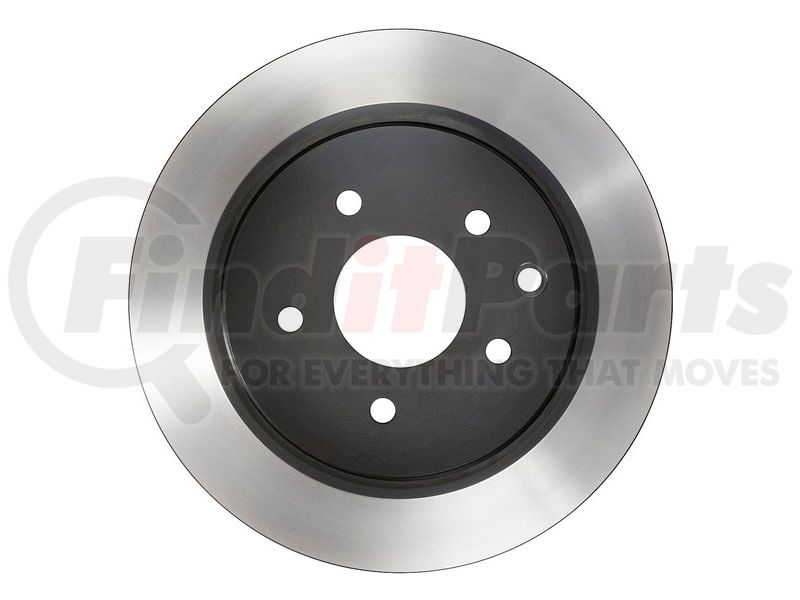

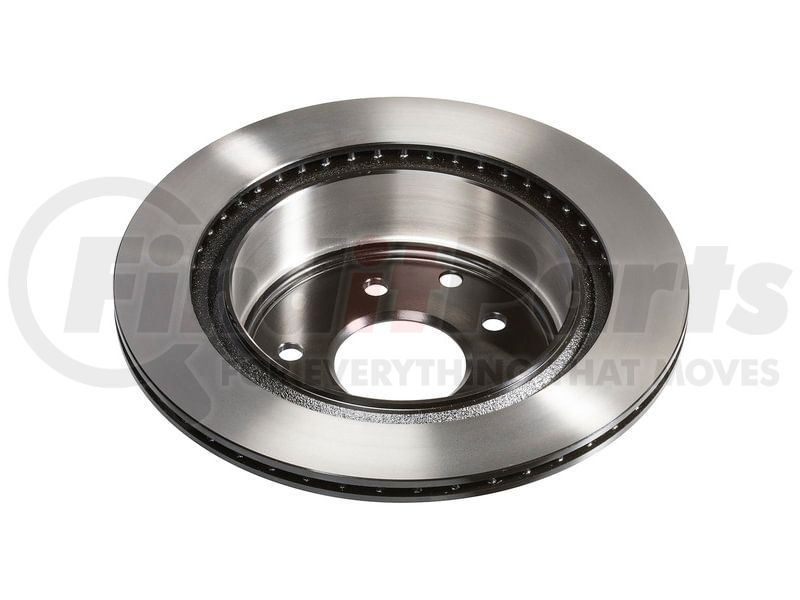

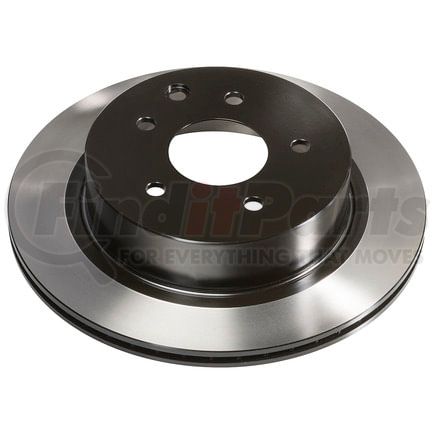

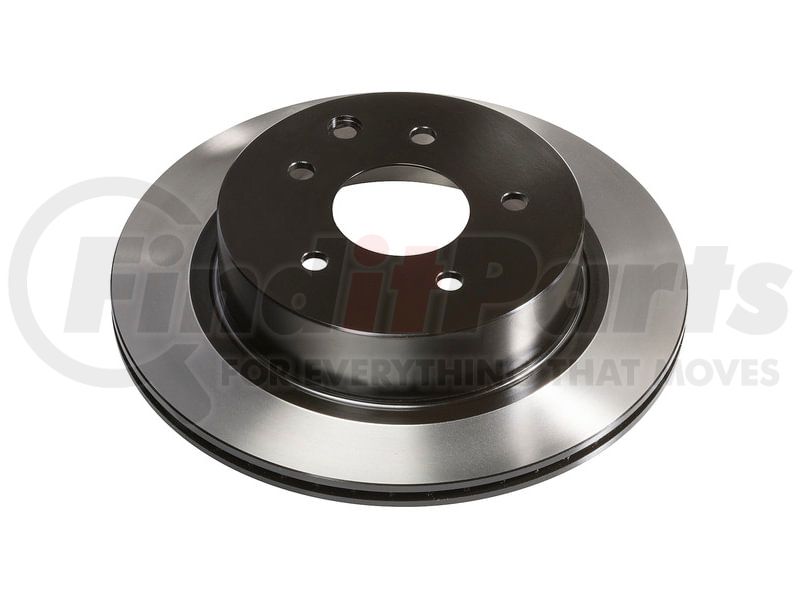

Wagner BD126093E Disc Brake Rotor Wagner Brake BD126093E Disc Brake Rotor
WAGNER
Tap to view 2 more

MSRP: $79.43

$40.49

Save $38.94

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

WAGNER BD126093E Part Description

Manufacturer

WAGNER

Product Description

Disc Brake Rotor

Application Summary

2009-2015 Renault Koleos (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2014-2017 Nissan Juke Nismo RS (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2011-2021 Nissan LEAF (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, Japan Built, Manual Parking Brake); 2014-2015 Nissan Rogue Select (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2017-2021 Nissan Rogue Sport SV S (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, Manual Parking Brake); 2017-2018 Nissan Qashqai (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2002-2016 Nissan X-Trail (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2008-2020 Nissan Rogue S SV (Rear) (Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, From 11/13, with 3rd Row Seating, without 3rd Row Seating, T32 and S35 Models, Fifth Digit of VIN is T, S, Manual Parking Brake); 2003-2005 Nissan 350Z (Rear) (Qualifier: Except 18 (in) Wheels, 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2003-2004 INFINITI G35 (Rear) (Transmission Control Type: Automatic / Qualifier: 5 Stud Wheel, with 292 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, without Brembo Brake System)

Features & Benefits

  • ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
  • OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
  • PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
  • RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
  • TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
  • NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
  • EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
  • CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
  • PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
  • SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
  • PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
  • BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
  • QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
  • EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
  • COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
  • PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
  • PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance

WAGNER BD126093E Specifications

Product Attributes

MaterialCast Iron
Nominal Thickness0.631 IN
Disc FinishDirectional
ConstructionFull Cast
Rust Resistant CoatingYes
Outside Diameter11.496 IN
Surface TypeSmooth
Solid Or Vented Type RotorVented
Height2.440 in
Part DescriptionDisc Brake Rotor
Nominal Thickness16.0 MM
Height61.9 MM
Stud/Lug Hole Quantity5
Outside Diameter292.0 MM
Overall Height61.9 MM
Overall Height2.440 IN
Bearings IncludedNo
Directional or Non-Directional Brake SurfaceNon-Directional
ABS Tone Ring IncludedNo
Center Hole Diameter68.1 MM
Center Hole Diameter2.680 IN
Conventional Or Drum-In-Hat Type RotorConventional
Discard Thickness0.551 IN
Discard Thickness14.0 MM
Mounting Bolt Hole Circle Diameter114.3 MM
Mounting Bolt Hole Circle Diameter4.500 IN
Mounting Bolt Hole Diameter12.8 MM
Mounting Bolt Hole Diameter0.503 IN
Prop 65 Label (Yes/No)No

Additional Information

Country of Origin (Primary)CN
Harmonized Tariff Code (Schedule B)8708305030
Harmonized Tariff Code (HTS)8708305030
UPC00008536950257
VMRS Code013017001
UNSPSC25171715

WAGNER BD126093E Cross References

BrandPart Number
ACDelco18A1664G, 18A1664A, 18A1664AC
Aimco31349
AutospecialtyJBR1106
Bosch40011061
BrakeBest Select Drum/Rotor980113RGS
CENTRIC120.42077
Carquest Platinum Painted RotorsYH145536P
Carquest Platinum Plus Coated RotorsYH145536C
Carquest Professional High Carbon RotorsYH145536HC
Carquest WeareverYH145536
Centric Parts120.42077, 121.42077, 125.39040, 12042077, 12142077, 12539040, 120.42077CRY, 320.42077F
Datsun/Nissan432063NF0A, 432064bt0b, 432068H305, 432068H701, 432068H702, 4320640, 432064BT0B
DuraGoBR31349, BR31349-01, BR31349-02
Duralast31349, 31349DL, 31349DG
Dynamic Friction Company604-67088, 600-67088
Honda432068H701
INFINITI432063NF0A, 432064BT0B, 432068H305
NAPA BRAKES880113CR, 48880113, 248880113
PowerStopJBR1106, JBR1106EVC
Pro-SeriesPS31349, C26093
Promax20-31349, 14-31349
RAYBESTOS980113, 980113R
Raybestos Brakes980113, 980113R, 980113FZN, 980113R2
UQuality Rotors2031349
WinhereUR001590
Worldparts SynergyWS1231349

WAGNER BD126093E Fits Vehicles

  • INFINITI G35 (2003-2005)
  • Nissan 350Z (2003-2005)
  • Nissan Juke (2014-2017)
  • Nissan LEAF (2011-2025)
  • Nissan Qashqai (2017-2023)
  • Nissan Rogue (2008-2020)
  • Nissan Rogue Select (2014-2015)
  • Nissan Rogue Sport (2017-2022)
  • Nissan X-Trail (2002-2016)
  • Renault Koleos (2009-2015)
