RAYBESTOS 96632 Part Description
Manufacturer
Product Description

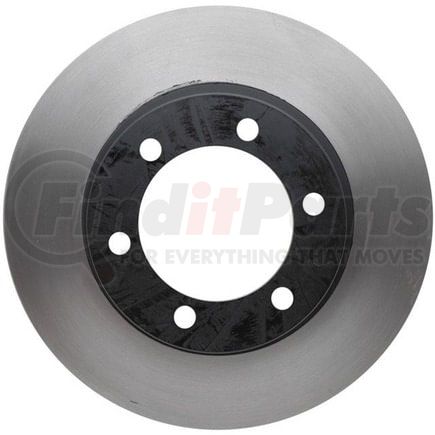

Raybestos Specialty - Truck Brake Rotor
Application Summary
2002-1996 Toyota 4Runner Front, 2004 Toyota Tacoma Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 96632 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.25 IN |
| Center Hole Diameter | 107.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 12.54 IN |
| Outside Diameter | 318.5 MM |
| Overall Height | 2.78 IN |
| Overall Height | 70.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730048437 |
RAYBESTOS 96632 Cross References
| Brand | Part Number |
|---|---|
| 600-5724, 747730048437 | |
| ADVANCE AUTO PARTS | 145137, YH145137, YH145137C, YH145137P |
| AMERICAN REMANUFACTURED | 789-22104, 89-22104 |
| ATE BRAKE PRODUCTS | 422185 |
| AUTOSPECIALTY | JBR794, JBR794E |
| AUTOXTRA | 125527, 8096632, AX31204 |
| AUTOZONE | 31204, 31204B, 31204DG, DL31204 |
| Autoxtra | AX31204P |
| BECK/ARNLEY | 080-2693, 083-2693 |
| BENDIX | 145137 |
| BRAKE HEADQUARTERS | BR06298 |
| BRAKEBEST | 81-125527, 96632, 96632FZN, 96632R, 96632RGS, BD125527 |
| BREMBO | 09.7226.10, 09.7226.11, 25488 |
| Bridgestone | 7009242 |
| CALIFORNIA DRUM & ROTOR | 125527 |
| CENTRIC | 120.44112, 120.44112CRY, 121.44112, 125.44112, 125.44112CRY, 126.44112CSL, 126.44112CSR, 126.44112SL, 126.44112SR, 127.44112CL, 127.44112CR, 127.44112L, 127.44112R, 128.44112CL, 128.44112CR, 128.44112L, 128.44112R, 227.44112L, 227.44112R, 320.44112, 321.44112 |
| CONTINENTAL-CONTITECH | CW22185 |
| Casting Numbers | 210759-C, 325041 |
| Centric Parts | 120.44112, 120.44112CRY, 121.44112, 125.44112, 125.44112CRY, 126.44112CSL, 126.44112CSR, 126.44112SL, 126.44112SR, 127.44112CL, 127.44112CR, 127.44112L, 127.44112R, 128.44112CL, 128.44112CR, 128.44112L, 128.44112R, 227.44112L, 227.44112R, 320.44112, 321.44112 |
| DELPHI | RB667 |
| DURA CORP | BR31204 |
| DuraGo | BR31204 |
| EUROROTOR | TO6112 |
| GREN | 20302 |
| GUARDIAN | 52-125527 |
| MAGMA PRODUCTS | PSR565153 |
| MIDAS | BR2082 |
| MIGHTY DISTRIBUTING SYSTEM | 31204 |
| MONROE BRAKES | BD125527 |
| NAPA BRAKES | SDK6319, TSR790, TSR792 |
| NEOTEK | 106359GF |
| NEWTEK AUTOMOTIVE | 31204 |
| Newtek Automotive USA | 31204 |
| Omnicraft | QBRR51 |
| PARTS MASTER | P125527 |
| PROMAX | 14-31204 |
| PRONTO | BR31204 |
| QUALIS | 31204 |
| QUALITEE INTERNATIONAL | 64-79-135 |
| QUALITY BRAND | 31204, Q070 |
| QUINTON HAZELL | BDC4806 |
| THE UNIVERSAL GROUP | 107888 |
| TOYOTA | 4351235210 |
| TRUSTAR | 479135, R79135 |
| TRW | 4115, DF4115S |
| TopNotch | TN96632GEO |
| UAP | 31204 |
| Ultra Brake | TO-6112 |
| Universal | 107888 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51214 |
| WABCO | PS125527 |
| WABCO - Archived | PS125527 |
| WAGNER | BD125527, BD125527E |
| WAGNER BRAKE | BD125527, BD125527E |
| WINHERE | 662339, YH2339 |
| WORLDPAC | 1407-78083, 1427-731980 |
RAYBESTOS 96632 Fits Vehicles
- Toyota Tacoma (2004)
- Toyota 4Runner (1995-2002)
