WAGNER BD125527E Part Description
Manufacturer
Product Description

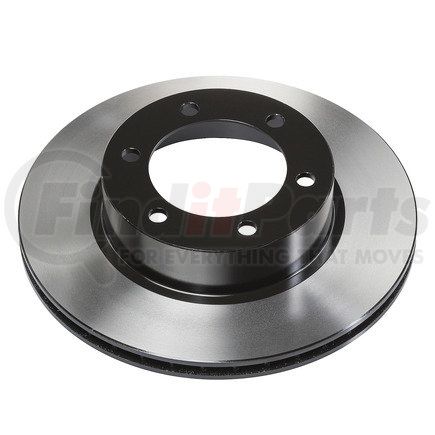

Disc Brake Rotor
Application Summary
1996-2002 Toyota 4Runner (Front) (Qualifier: with 16 (in) Steel Wheels, 6 Stud Wheel, with 318 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2004 Toyota Tacoma (Front) (Qualifier: 6 Stud Wheel, with 318 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125527E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 21.9 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 318.5 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 70.3 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 0.864 IN |
| Stud/Lug Hole Quantity | 6 |
| Outside Diameter | 12.542 IN |
| Overall Height | 2.768 IN |
| Overall Height | 70.3 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536947295 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125527E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A834 |
| Aimco | 31204 |
| Autospecialty | JBR-794, JBR794 |
| Bendix | 145137 |
| Bosch | 50011224 |
| BrakeBest Select Drum/Rotor | 96632RGS |
| Brembo | 25488 |
| CENTRIC | 120.44112 |
| Carquest | 31204 |
| Carquest Wearever | YH145137 |
| Centric Parts | 120.44112, 121.44112, 12044112, 12144112, 120.44112CRY, 320.44112F |
| DuraGo | BR31204, BR31204-01, BR31204-02 |
| Duralast | 31204 |
| Dynamic Friction Company | 604-76123, 600-76123 |
| NAPA | 4886632, 86632 |
| NAPA BRAKES | 86632CR, 4886632, 24886632 |
| PowerStop | JBR794, JBR794EVC |
| Pro-Series | C25527, PS31204 |
| RAYBESTOS | 96632, 96632R |
| Raybestos Brakes | 96632, 96632R, 96632FZN, 96632R2 |
| Toyota | 4351235210 |
| Universal | 107888 |
| Worldparts Synergy | WS1231204 |
WAGNER BD125527E Fits Vehicles
- Toyota Tacoma (2004)
- Toyota 4Runner (1996-2002)
WAGNER BD125527E Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER BD125527E Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
