(888) 312-8812 Login SignupRAYBESTOS 980054 Raybestos Specialty - Street Performance Brake Rotor
$47.40
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980054 Part Description
Manufacturer
Product Description

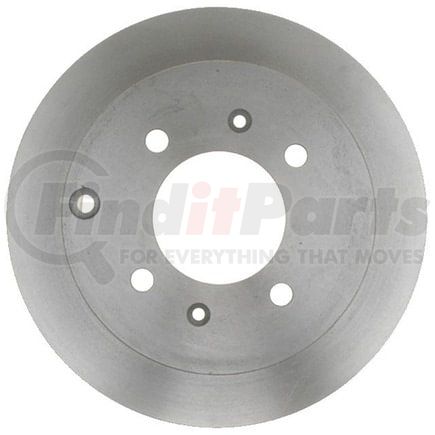

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2005-1999 Hyundai Sonata Rear, 2006-2001 Kia Optima Rear, 2006-2001 Kia Magentis Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980054 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.99 IN |
| Center Hole Diameter | 75.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.491 IN |
| Mounting Bolt Hole Diameter | 12.45 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 10.315 IN |
| Outside Diameter | 262 MM |
| Overall Height | 2.402 IN |
| Overall Height | 61 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352226278 |
RAYBESTOS 980054 Cross References
| Brand | Part Number |
|---|---|
| 78104844, 829352226278 | |
| ADVANCE AUTO PARTS | YH145532, YH145532C, YH145532P |
| ATE BRAKE PRODUCTS | 410317 |
| AUTOPARTSOURCE | 482100 |
| AUTOSPECIALTY | JBR777, JBR777E |
| AUTOXTRA | 126166, 80980054, AX31333 |
| AUTOZONE | 31333, 31333DG, DL31333 |
| BECK/ARNLEY | 083-2901 |
| BENDIX | 145532 |
| BRAKEBEST | 28010804, 81-126166, 980054, 980054FZN, 980054R, 980054RGS, BD126166 |
| BREMBO | 08.A114.10, 25905, 08.A114.11 |
| CENTRIC | 120.51007, 121.51007, 125.51007, 126.51007SL, 126.51007SR, 127.51007L, 127.51007R, 320.51007, 321.51007 |
| Casting Numbers | 326024 |
| Centric Parts | 120.51007, 121.51007, 125.51007, 126.51007SL, 126.51007SR, 127.51007L, 127.51007R, 320.51007, 321.51007 |
| DURA CORP | BR31333 |
| DuraGo | BR31333 |
| GREN | 98201 |
| Hyundai | 5841138310 |
| KIA | 584113C000 |
| MAGMA PRODUCTS | PSR283012 |
| MIGHTY DISTRIBUTING SYSTEM | 31333 |
| NEOTEK | 106920GF |
| NEWTEK AUTOMOTIVE | 31333 |
| Newtek Automotive USA | 31333 |
| Omnicraft | QBRR22 |
| PILENGA | 5712 |
| PROMAX | 14-31333 |
| PRONTO | BR31333 |
| QUALIS | 31333 |
| QUALITY BRAND | Q157 |
| QUINTON HAZELL | BDC5202 |
| STANDARD ROTORS AND DRUMS | 31333 |
| UAP | 31333 |
| Ultra Brake | HY-387 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51554 |
| WABCO | PS126166 |
| WABCO - Archived | PS126166 |
| WAGNER | BD126166, BD126166E |
| WAGNER BRAKE | BD126166, BD126166E |
| WINHERE | 661625 |
| WORLDPAC | 1407-78939 |
RAYBESTOS 980054 Fits Vehicles
- Kia Magentis (2001-2006)
- Kia Optima (2001-2006)
- Hyundai Sonata (1999-2005)
