(888) 312-8812 Login SignupRAYBESTOS 980050R Raybestos R-Line Brake Rotor
MSRP: $113.00
$8449
Save $28.51
Limited availability at this price!
In Stock
Get it by Monday, Aug 10
RAYBESTOS 980050R Part Description
Manufacturer
Product Description

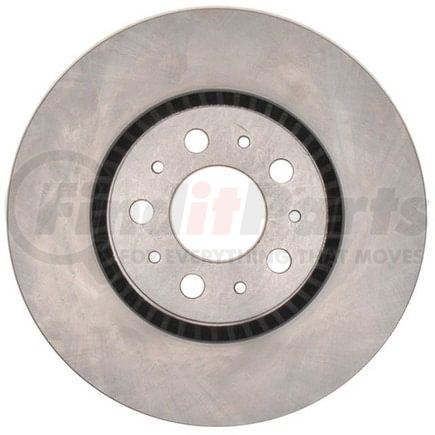

Raybestos R-Line Brake Rotor
Application Summary
2009-2001 Volvo S60 Front, 2007-2003 Volvo XC70 Front, 2007-2001 Volvo V70 Front, 2006-1999 Volvo S80 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980050R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.008 IN |
| Outside Diameter | 305 MM |
| Overall Height | 1.98 IN |
| Overall Height | 50.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352372890 |
RAYBESTOS 980050R Cross References
| Brand | Part Number |
|---|---|
| 901229MM, 829352372890 | |
| ADVANCE AUTO PARTS | 145395, 832812, YH145395, YH145395C |
| AUTOSPECIALTY | EBR643 |
| AUTOXTRA | AX34208 |
| AUTOZONE | 083-2812, 34208DG |
| AutoZone | 34208 |
| BECK/ARNLEY | 083-2812, 083-2814 |
| BENDIX | 145395 |
| BRAKEBEST | 52011348, 52011350, 980050, 980050R, 980050RGS, BD126189 |
| BREMBO | 09.9130.10, 09.9130.11, 25532, 25920 |
| Brembo | 09.9130.1X, 09.9130.75 |
| CENTRIC | 120.39026, 121.39026, 125.39026, 125.39026CRY, 126.39026CSL, 126.39026CSR, 126.39026SL, 126.39026SR, 127.39026L, 128.39026CL, 128.39026L, 320.39026H |
| CONTINENTAL-CONTITECH | CW28123 |
| Casting Numbers | 211406-C, 325617 |
| Centric Parts | 120.39026, 121.39026, 125.39026, 125.39026CRY, 126.39026CSL, 126.39026CSR, 126.39026SL, 126.39026SR, 127.39026L, 128.39026CL, 128.39026L, 320.39026H |
| DURA CORP | BR34208 |
| DuraGo | BR34208 |
| Eurorotor | VO-922 |
| MAGMA PRODUCTS | PMR603025 |
| MIGHTY DISTRIBUTING SYSTEM | 34208 |
| NAPA BRAKES | SDK6179 |
| NEWTEK AUTOMOTIVE | 34208 |
| Newtek Automotive USA | 34208 |
| PILENGA | V263 |
| POWERSTOP | EBR643EVC |
| PROMAX | 14-34208 |
| QUALIS | 34208 |
| QUALITEE INTERNATIONAL | 64-21-300 |
| QUINTON HAZELL | BDC4728 |
| Qualis | 45050 |
| TRUSTAR | 421300, R21300 |
| TRW | 4053, DF4053S |
| UAP | 34208 |
| Ultra Brake | VO-922 |
| VAICO | V9580005 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51519 |
| VOLVO | 274170, 2741700, 272404, 2724045, 31262707, 312627070, 31262716, 312627160 |
| WABCO | PS126189 |
| WABCO - Archived | PS126189 |
| WAGNER | BD126498, BD126189E, BD126189 |
| WAGNER BRAKE | BD126189, BD126189E |
| WINHERE | 662799 |
| WORLDPAC | 1407-78816 |
RAYBESTOS 980050R Fits Vehicles
- Volvo XC70 (2003-2007)
- Volvo V70 (2001-2007)
- Volvo S80 (1999-2006)
- Volvo S60 (2001-2009)
