RAYBESTOS 96147 Part Description
Manufacturer
Product Description

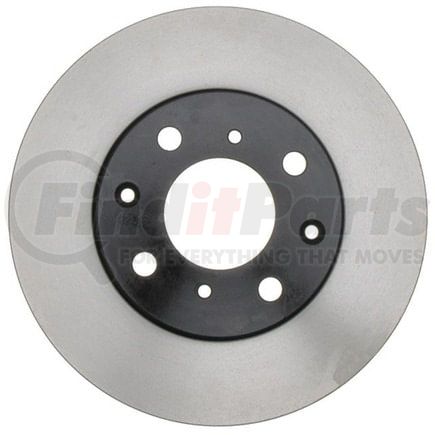

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2000-1990 Honda Civic Front, 1997-1993 Honda Civic del Sol Front, 1991-1990 Honda CRX Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96147 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.41 IN |
| Center Hole Diameter | 61.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.748 IN |
| Discard Thickness | 19 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.825 IN |
| Nominal Thickness | 20.95 MM |
| Outside Diameter | 9.44 IN |
| Outside Diameter | 239.8 MM |
| Overall Height | 1.75 IN |
| Overall Height | 44.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999234933 |
RAYBESTOS 96147 Cross References
| Brand | Part Number |
|---|---|
| 190-9043, 30999234933 | |
| ADVANCE AUTO PARTS | 141581, YH141581, YH141581C |
| ALTROM IMPORTS | A31029 |
| AMERICAN REMANUFACTURED | 789-08024, 89-08024 |
| ATE BRAKE PRODUCTS | 419106 |
| AUTOPART INTERNATIONAL | 78014 |
| AUTOPARTSOURCE | 572310 |
| AUTOSPECIALTY | JBR525, JBR525E |
| AUTOXTRA | 125006, 8096147, AX31029 |
| AUTOZONE | 31029, 31029B, 31029DG, DL31029 |
| BECK/ARNLEY | 080-2259, 083-2259 |
| BENDIX | 141581 |
| BOSCH | RBR31029 |
| BRAKE HEADQUARTERS | BR02028 |
| BRAKE PRO | 4612128, 4616147 |
| BRAKEBEST | 26010734, 26010765, 81-125006, 96147, 96147FZN, 96147R, 96147RGS, BD125006 |
| BREMBO | 09.5285.80, 25507 |
| Brembo | 09.5285.11 |
| Bridgestone | 7008095 |
| CALIFORNIA DRUM & ROTOR | 125006 |
| CENTRIC | 120.40023, 120.40023CRY, 121.40023, 125.40023, 125.40023CRY, 126.40023CSL, 126.40023CSR, 126.40023SL, 126.40023SR, 127.40023CL, 127.40023CR, 127.40023L, 127.40023R, 128.40023CL, 128.40023CR, 128.40023L, 128.40023R, 227.40023L, 227.40023R, 320.40023, 320.40023F, 321.40023 |
| CENTURY | 9467 |
| CONTINENTAL-CONTITECH | CW21104 |
| Casting Numbers | 210499-C, 325006, 68970 |
| Centric Parts | 120.40023, 120.40023CRY, 121.40023, 125.40023, 125.40023CRY, 126.40023CSL, 126.40023CSR, 126.40023SL, 126.40023SR, 127.40023CL, 127.40023CR, 127.40023L, 127.40023R, 128.40023CL, 128.40023CR, 128.40023L, 128.40023R, 227.40023L, 227.40023R, 320.40023, 320.40023F, 321.40023 |
| DELPHI | RB66 |
| DURA CORP | BR31029 |
| DuraGo | BR31029 |
| EIS BRAKES | D17551, D17462 |
| EUROROTOR | HO526 |
| GREN | 42602 |
| GUARDIAN | 52-125006 |
| HONDA | 45251SR3A00, 45251SR3A10, 45251SH1A00, 45251SH3A00 |
| INTERBRAKES | HO211V |
| ITM ENGINE COMPONENTS | 1600928 |
| MAGMA PRODUCTS | PSR263023 |
| MCI | 3814 |
| MIDAS | BR1664 |
| MIGHTY DISTRIBUTING SYSTEM | 31029 |
| MONROE BRAKES | BD125006 |
| NAPA BRAKES | TSR473, TSR7163 |
| NEOTEK | 106209GF |
| NEWTEK AUTOMOTIVE | 31029 |
| Newtek Automotive USA | 31029 |
| Omnicraft | QBRR170 |
| PARTS MASTER | P125006 |
| POWERSTOP | JBR525EVC |
| PROMAX | 14-31029 |
| PRONTO | BR31029 |
| QUALIS | 31029 |
| QUALITEE INTERNATIONAL | 64-72-310 |
| QUALITY BRAND | 31029, Q193 |
| QUINTON HAZELL | BDC4371 |
| ROADMATES | 526693 |
| ROCKHILL | 31029 |
| SEARS | 17444 |
| STANDARD ROTORS AND DRUMS | 31029 |
| THE UNIVERSAL GROUP | 108291 |
| TRUSTAR | 472310, R72310 |
| TRW | 1436, DF1436S, DF7163S |
| UAP | 31029 |
| Ultra Brake | HO-526 |
| Universal | 108291 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50679 |
| WABCO | PS125006 |
| WABCO - Archived | PS125006 |
| WAGNER | BD125006E, BD125006 |
| WAGNER BRAKE | BD125006, BD125006E |
| WINHERE | 442196, YH2196 |
| WORLDPAC | 1407-78014, 1427-719784 |
RAYBESTOS 96147 Fits Vehicles
- Honda CRX (1990-1991)
- Honda Civic del Sol (1993-1997)
- Honda Civic (1990-2000)
