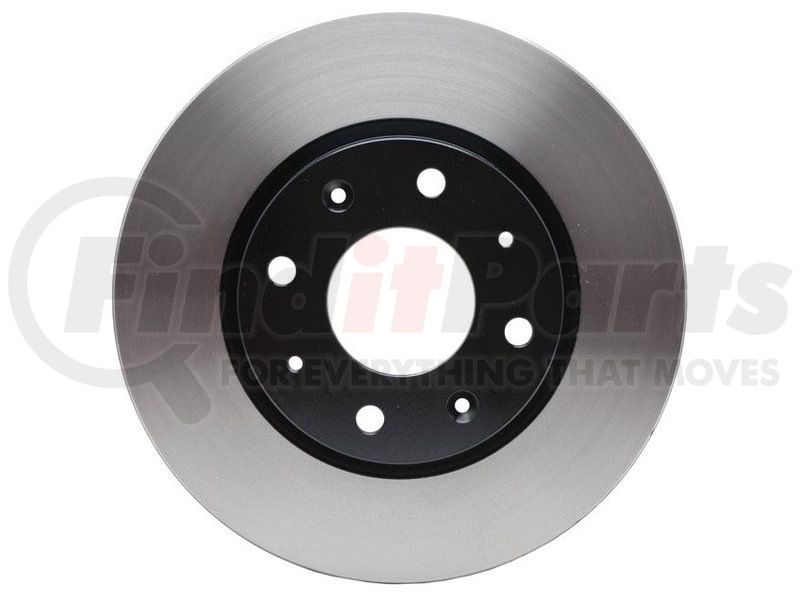

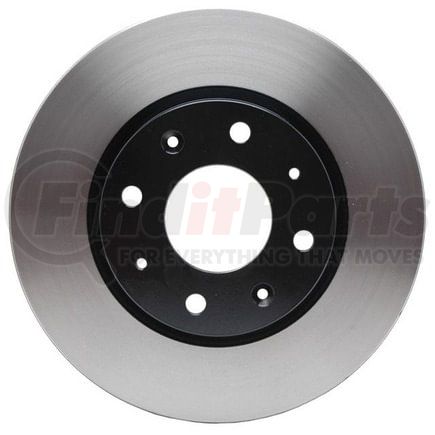

(888) 312-8812 Login SignupRAYBESTOS 980385 Raybestos Specialty - Street Performance Brake Rotor
$70.38
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980385 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2009-2004 Kia Spectra Front, 2009-2005 Kia Spectra5 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980385 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 1.029 IN |
| Nominal Thickness | 26.15 MM |
| Outside Diameter | 10.825 IN |
| Outside Diameter | 274.95 MM |
| Overall Height | 1.866 IN |
| Overall Height | 47.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352476451 |
RAYBESTOS 980385 Cross References
| Brand | Part Number |
|---|---|
| ASH23465, 829352476451 | |
| ATE BRAKE PRODUCTS | 426155 |
| AUTOPARTSOURCE | 483130 |
| AUTOXTRA | AX900404 |
| AUTOZONE | 44312, 44312DG |
| BENDIX | PRT5677 |
| BOSCH | 32010865 |
| BRAKEBEST | 32010865, 980385, 980385FZN, 980385R, 980385RGS |
| BREMBO | 09.9997.10 |
| CENTRIC | 120.50012, 120.50012CRY, 121.50012, 126.50012CSL, 126.50012CSR, 126.50012SL, 126.50012SR, 127.50012L, 127.50012R, 320.50012, 320.50012F, 321.50012 |
| Casting Numbers | 326287 |
| Centric Parts | 120.50012, 120.50012CRY, 121.50012, 126.50012CSL, 126.50012CSR, 126.50012SL, 126.50012SR, 127.50012L, 127.50012R, 320.50012, 320.50012F, 321.50012 |
| DURA CORP | BR31417, BR900404, BR90040402 |
| DuraGo | 60436, 900404, BR60436, BR900404, BR90040402 |
| KIA | 517122F100 |
| MAGMA PRODUCTS | PSR283023 |
| NEOTEK | 106924GF |
| NEWTEK AUTOMOTIVE | 31417 |
| Newtek Automotive USA | 31417 |
| Omnicraft | QBRR639 |
| POWERSTOP | JBR1515EVC |
| PROMAX | 14-31417 |
| PRONTO | BR900404 |
| QUALIS | 44312 |
| TRW | DF7679 |
| TopNotch | TN980385GEO |
| UAP | 31417 |
| WAGNER | BD126448, BD126448E |
| WAGNER BRAKE | BD126448 |
| WINHERE | 6620271 |
| WORLDPAC | 1407-77133 |
| Wagner Brake | BD126448E |
RAYBESTOS 980385 Fits Vehicles
- Kia Spectra5 (2005-2009)
- Kia Spectra (2004-2009)
RAYBESTOS 980385 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980385 Questions & Answers
No questions yet
Be the first to ask a question about this product!
