RAYBESTOS 96566 Part Description
Manufacturer
Product Description

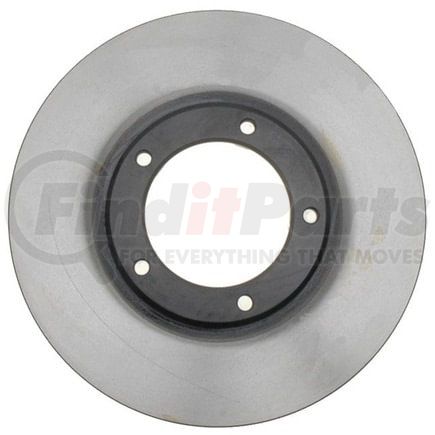

Raybestos Specialty - Truck Brake Rotor
Application Summary
2004-1995 Toyota Tacoma Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 96566 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.39 IN |
| Center Hole Diameter | 86.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 1.25 IN |
| Mounting Bolt Hole Diameter | 31.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.86 IN |
| Nominal Thickness | 21.85 MM |
| Outside Diameter | 10 IN |
| Outside Diameter | 254 MM |
| Overall Height | 1.62 IN |
| Overall Height | 41.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999946485 |
RAYBESTOS 96566 Cross References
| Brand | Part Number |
|---|---|
| 29502040, 30999946485 | |
| ADVANCE AUTO PARTS | 145077, YH145077, YH145077C |
| AMERICAN REMANUFACTURED | 789-22100, 89-22100 |
| AUTOPART INTERNATIONAL | 78183 |
| AUTOSPECIALTY | JBR790, JBR790E |
| AUTOXTRA | 125480, 8096566, AX31146 |
| AUTOZONE | 31146, 31146B, 31146DG, DL31146 |
| BECK/ARNLEY | 080-2652, 083-2652 |
| BENDIX | 145077 |
| BOSCH | RBR31146 |
| BRAKE HEADQUARTERS | BR06293 |
| BRAKEBEST | 50011230, 81-125480, 96566, 96566R, 96566RGS, BD125480 |
| BREMBO | 09.7266.10, 25489, 09726611 |
| CALIFORNIA DRUM & ROTOR | 125480 |
| CENTRIC | 120.44108, 120.44108CRY, 121.44108, 126.44108CSL, 126.44108CSR, 126.44108SL, 126.44108SR, 127.44108CL, 127.44108CR, 127.44108L, 127.44108R, 128.44108CL, 128.44108CR, 128.44108L, 128.44108R, 227.44108L, 227.44108R, 320.44108, 321.44108 |
| CONTINENTAL-CONTITECH | CW22709 |
| Casting Numbers | 211063-C, 325032 |
| Centric Parts | 120.44108, 120.44108CRY, 121.44108, 126.44108CSL, 126.44108CSR, 126.44108SL, 126.44108SR, 127.44108CL, 127.44108CR, 127.44108L, 127.44108R, 128.44108CL, 128.44108CR, 128.44108L, 128.44108R, 227.44108L, 227.44108R, 320.44108, 321.44108 |
| DELPHI | RB293 |
| DURA CORP | BR31146 |
| DuraGo | BR31146 |
| EIS BRAKES | D17812 |
| EUROROTOR | TO6110 |
| GREN | 18602 |
| GUARDIAN | 52-125480 |
| MAGMA PRODUCTS | PSR565152 |
| MIDAS | BR2012 |
| MIGHTY DISTRIBUTING SYSTEM | 31146 |
| NEOTEK | 106354GF |
| NEWTEK AUTOMOTIVE | 31146 |
| Newtek Automotive USA | 31146 |
| PARTS MASTER | P125480 |
| POWERSTOP | JBR790EVC |
| PROMAX | 14-31146 |
| PRONTO | BR31146 |
| QUALIS | 31146 |
| QUALITEE INTERNATIONAL | 64-79-155 |
| QUALITY BRAND | 31146, Q098 |
| STANDARD ROTORS AND DRUMS | 31146, GP31204 |
| THE UNIVERSAL GROUP | 107896 |
| TOYOTA | 4351204010, 4351235290, 4351235300 |
| TRUSTAR | 479155, R79155 |
| TopNotch | TN96566GEO |
| UAP | 31146 |
| Ultra Brake | TO-6110 |
| Universal | 107896 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50942 |
| WAGNER | BD125480, BD125480E |
| WAGNER BRAKE | BD125480, BD125480E |
| WINHERE | 442237, YH2237 |
| WORLDPAC | 1407-78183, 1427-719961 |
RAYBESTOS 96566 Fits Vehicles
- Toyota Tacoma (1995-2004)
