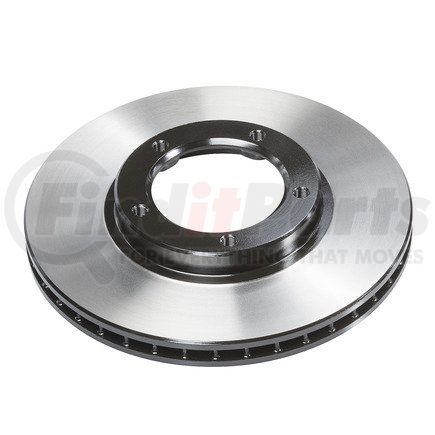

WAGNER BD125480E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
1995-2004 Toyota Tacoma (Front) (Qualifier: 5 Stud Wheel, with 254 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125480E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 21.9 MM |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 253.7 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 1.625 in |
| Part Description | Disc Brake Rotor |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 9.990 IN |
| Overall Height | 1.625 IN |
| Overall Height | 41.2 MM |
| Nominal Thickness | 0.865 IN |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536950486 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD125480E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A732 |
| Aimco | 31146 |
| Autospecialty | JBR790 |
| Bendix | 145077 |
| Bosch | 50011230 |
| BrakeBest Select Drum/Rotor | 96566RGS |
| Brembo | 25489 |
| Carquest | 31146 |
| Carquest Wearever | YH145077 |
| Centric Parts | 120.44108, 121.44108, 12044108, 12144108, 120.44108CRY, 320.44108F |
| DuraGo | BR31146, BR31146-01 |
| Duralast | 31146 |
| Dynamic Friction Company | 600-76120, 604-76120 |
| NAPA BRAKES | 4886566, 24886566 |
| PowerStop | JBR790, JBR790EVC |
| RAYBESTOS | 96566, 96566R |
| Raybestos Brakes | 96566, 96566R |
| Toyota | 4351204010, 4351235290, 4351235300 |
| Universal | 107896 |
WAGNER BD125480E Fits Vehicles
- Toyota Tacoma (1995-2004)
