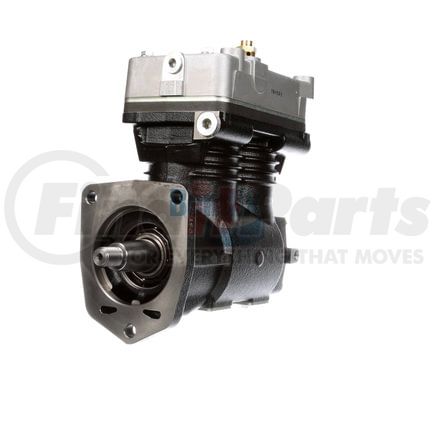

Name: Bendix 800658 DuraFlo 596™ Air Brake Compressor - New, Engine Driven, Air Cooling, 3.465 in. Bore Diameter
SKU: 800658
Price: 6632.99 USD
Availability: InStock

BENDIX part description

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

Compressor

Features & Benefits

Provides and maintains air under pressure in order to operate devices in the air brake and/or auxiliary air systems
A two-cylinder reciprocating compressor consisting of a water-cooled cylinder head and valve body assembly and an air-cooled integral crankcase and cylinder block
Equipped with a discharge line safety valve to protect the compressor head in the event of a discharge line freeze-up
Has a built in unloading and ESS or Energy Saving System that reduces compressor power consumption up to 80% in the unloaded mode
Governor must be combined with a synchro valve for proper operation and extended service life
DuraFlo 596™ air compressors are approved for natural aspiration only
Engineered to meet the highest quality standards for maximum reliability
Designed to deliver consistent quality and performance even under extreme operating conditions

Bendix DuraFlo 596™ Series Air Brake Compressor

Engineered to offer better performance and efficiency, the Bendix DuraFlo 596™ Series air brake compressor is all you need to restore the like-new condition of your truck's air brake system. It is a part of Bendix's comprehensive lineup of new and reman compressors designed to help fleets and vehicle owners extend their vehicle's service life and reduce their total cost of vehicle ownership.

Product Attributes

Bore Diameter	3.465 in.
Cooling Type	Air
Cylinder Quantity	2
Discharge Port Diameter	1-1/16 in. - 12 UNF
Mounting Type	Flange Mount
Oil Port Diameter	1/2 in. - 20 UNF
Operation	Engine Driven
Rated Displacement	27 CFM @ 1250 RPM
Safety Valve Port Diameter	3/4 in. - 16 UNF
Series	DuraFlo 596™
Stroke Length	1.968 in.
Unloader Port Diameter	7/8 in. - 14 UNF
Water Port Diameter	3/4 in. - 16 UNF

Additional Information

Country of Origin (Primary)	FR
Harmonized Tariff Code (HTS)	8414801625
VMRS Code	013009001
