Centric 405.34009 - Centric Premium Hub and Bearing Assembly
$22499
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

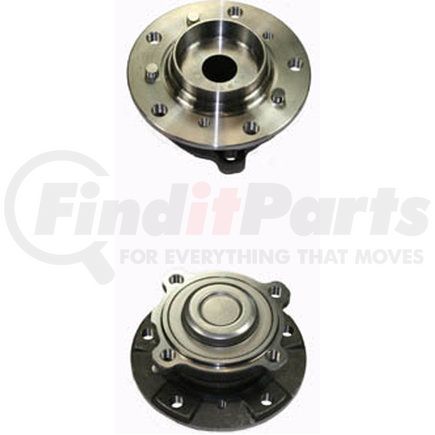

Centric Premium Hub and Bearing Assembly
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017

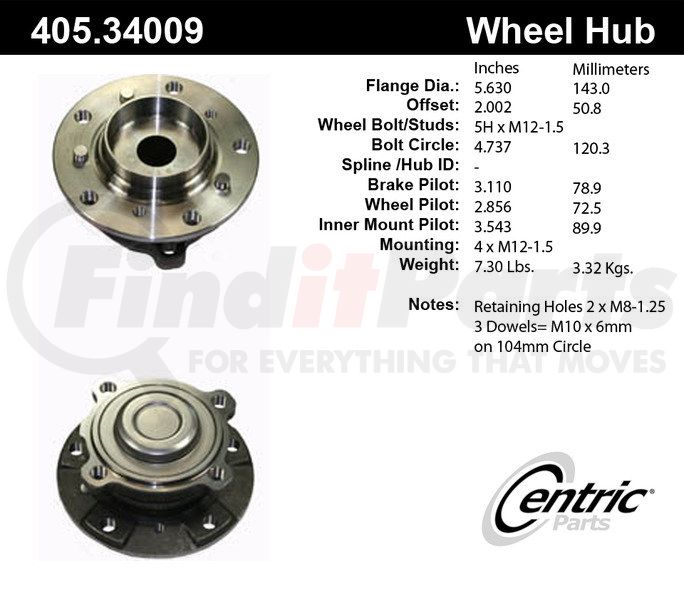

Product Attributes
| Off-set [cntrc] Mm | 2.002 |
| Bolt Circle Diameter [cntrc] In | 4.737 |
| Product Grade [cntrc] | Premium |
| Inner Mount Pilot [cntrc] Mm | 89.990 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Bolt Circle Diameter [cntrc] Mm | 120.320 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 3.543 |
| Off-set [cntrc] In | 50.850 |
| Mounting Hole Qty [cntrc] | 4 |
| Notes [cntrc] | 1 Rotor Mount Hole, 3 Dowel pins = M10 x 6mm on 104mm circle |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 72.540 MM |
| Wheel Pilot Diameter | 2.856 IN |
| Brake Pilot Diameter | 78.990 MM |
| Brake Pilot Diameter | 3.110 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.630 IN |
| Flange Diameter | 143.000 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | DE |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890619154 |
Part Interchanges
Fits Vehicles
- BMW 1 Series M (2011)
- BMW M3 (2008-2013)
- BMW M6 (2006-2011)
- BMW M5 (2006-2010)
