(888) 312-8812 Login SignupCENTRIC 122.65047 Centric Premium Brake Drum
Tap to view 4 more
$8899
Limited availability at this price!
In Stock
Get it by Friday, Dec 19
CENTRIC 122.65047 Part Description
Manufacturer
Product Description

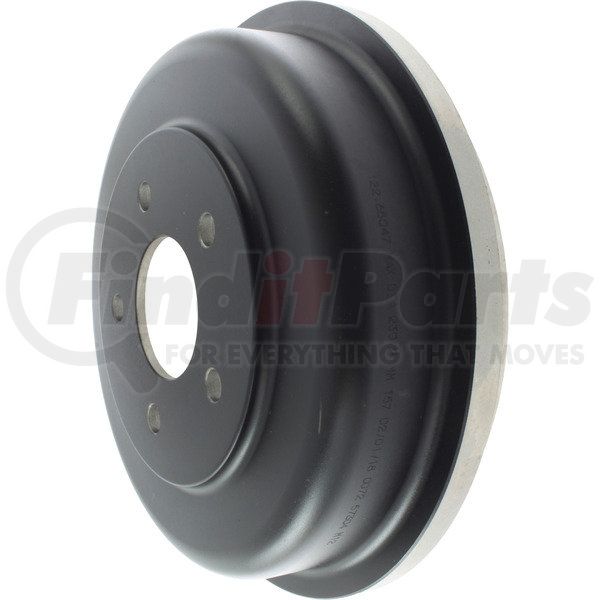

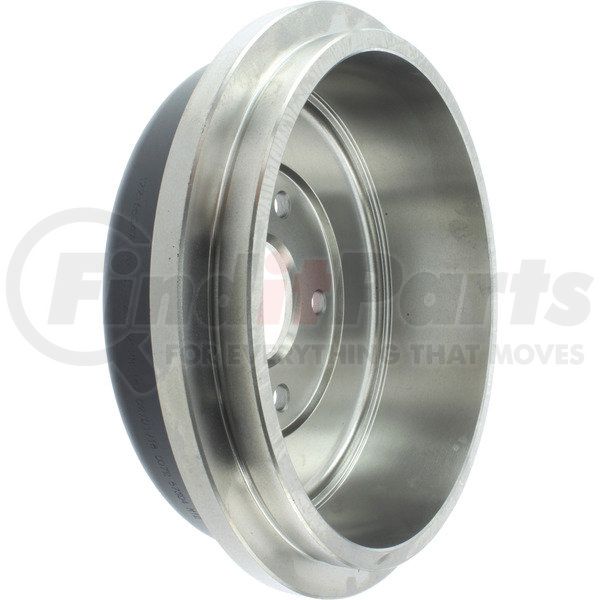

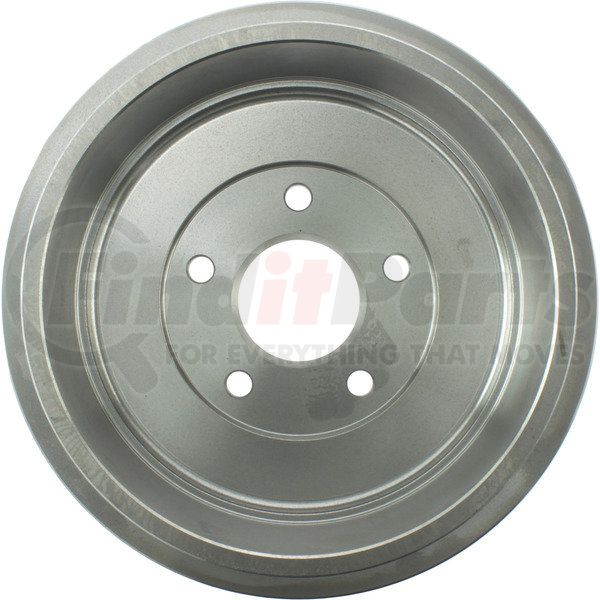

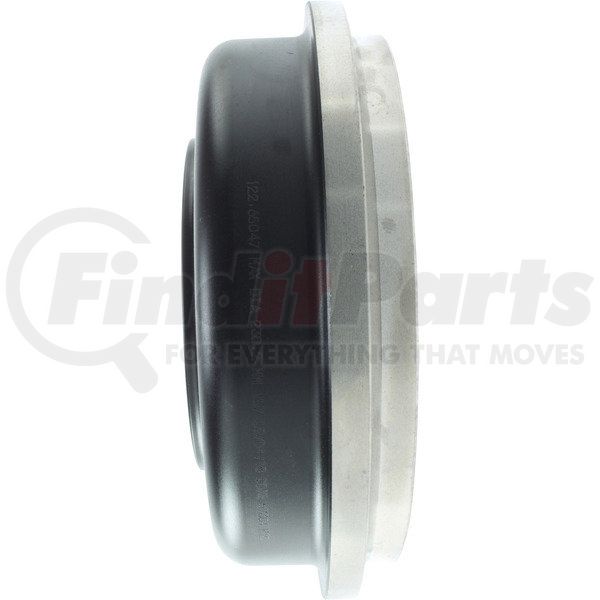

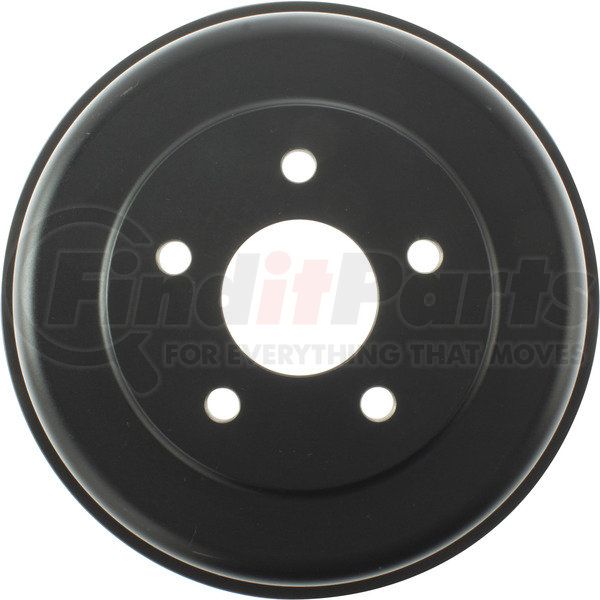

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.65047 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.977 |
| Weight [cntrc] Lbs | 17.550 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 63.300 |
| Hub Hole / Register [cntrc] In | 2.492 |
| Height [cntrc] Mm | 89.611 |
| Height [cntrc] In | 3.528 |
| Friction Surface Width [cntrc] Mm | 64.800 |
| Friction Surface Width [cntrc] In | 2.551 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 230.000 MM |
| Maximum Brake Diameter (Discard) | 9.055 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 279.200 MM |
| Outside Diameter | 10.992 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Nominal Drum Diameter | 228.300 MM |
| Nominal Drum Diameter | 8.988 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890618027 |
CENTRIC 122.65047 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 97804R |
| N/A | BD180280, E127-70-052, 920152, BD920152, T141126A, YH287325, 22117, BRDF11, 80130, 22117G, AT1Z1126A, 2T1Z1126B, 2T1Z1126C, 8T1Z1126A, 8T1Z1126B, 97804, 860029, 36554085, E12770052 |
CENTRIC 122.65047 Fits Vehicles
- Ford Transit Connect (2010-2013)
CENTRIC 122.65047 Cross References
We have 3 alternatives for the 122.65047 by CENTRIC:
