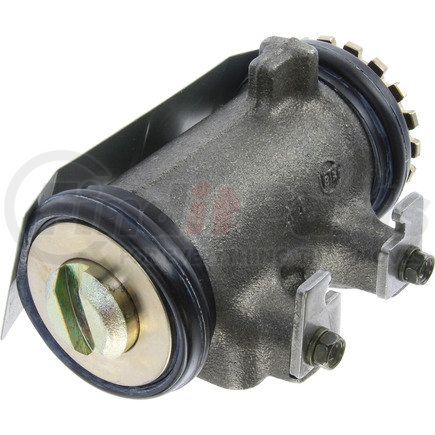

Centric 134.76147 - Centric Premium Wheel Cylinder
$41899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Wheel Cylinder
Features & Benefits
- OE style replacement. Highest quality. Includes brass inserts and aluminum castings where applicable
Product Attributes
| Notes 1 [cntrc] | 1 Piston with Star Wheel, Metal Shield bolted on one side, 2 small brackets on the other |
| Product Grade [cntrc] | Premium |
| Piston 1 Type [cntrc] | Slotted |
| Publication Bore [cntrc] | 44mm |
| Piston 2 Type [cntrc] | Slotted |
| Weight [cntrc] Kgs | 0.910 |
| Port 2 Flare Type [cntrc] | Inverted Flare |
| Weight [cntrc] Lbs | 2.000 |
| Attachment Type | Bolted |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Method | 4 Bolts |
| Mounting Hole Quantity | 4 |
| Bleeder Screw Included | Yes |
| Piston Quantity | 2 |
| Bore Diameter | 44.000 MM |
| Bore Diameter | 1.732 IN |
| 9190 | 1.000 MM |
| Flare Type | Inverted Flare |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8412210075 |
| UPC | 805890019244 |
Part Interchanges
CENTRIC 134.76147 Cross Reference
We have 4 alternatives for the 134.76147 by CENTRIC:
Fits Vehicles
- GMC W6500 Forward (1994-1996)
- Chevrolet W6500 Tiltmaster (1994-1996)
- Isuzu FSR (1994-1996)
