(888) 312-8812 Login SignupRAYBESTOS 5036R Raybestos R-Line Brake Rotor
$70.18
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 5036R Part Description
Manufacturer
Product Description

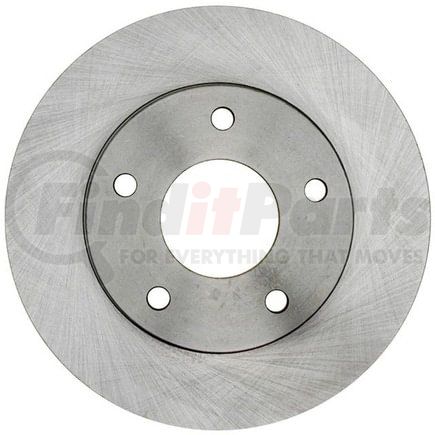

Raybestos R-Line Brake Rotor
Application Summary
1997-1983 Chevrolet S10 Front, 1997-1991 GMC Sonoma Front, 1997-1995 Chevrolet Blazer Front, 1994-1983 Chevrolet S10 Blazer Front, 1997-1992 GMC Jimmy Front, 1990-1983 GMC S15 Front, 1985-1979 Cadillac Eldorado Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 5036R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.79 IN |
| Center Hole Diameter | 70.85 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.957 IN |
| Discard Thickness | 24.3 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.75 IN |
| Mounting Bolt Hole Circle Diameter | 120.65 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.035 IN |
| Nominal Thickness | 26.3 MM |
| Outside Diameter | 10.5 IN |
| Outside Diameter | 266.7 MM |
| Overall Height | 2.05 IN |
| Overall Height | 52.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352363744 |
RAYBESTOS 5036R Cross References
| Brand | Part Number |
|---|---|
| 85808316, 829352363744 | |
| ACDELCO | 177-610, 177-652, 177-769 |
| ADVANCE AUTO PARTS | 141261, YH141261 |
| AMERICAN REMANUFACTURED | 789-44006, 89-44006 |
| AUTOPART INTERNATIONAL | 25029 |
| AUTOSPECIALTY | AR8606, AR8606E |
| AUTOXTRA | 805036, AX5550 |
| AUTOZONE | 5550, 5550B, DL5550 |
| BENDIX | 141261, R448429 |
| BOSCH | 25010550, RBR5550 |
| BRAKE HEADQUARTERS | BR55500 |
| BRAKE PRO | 4615036 |
| BRAKEBEST | 25010550, 5036, 5036R, 5036RGS, 81-102075, BD102075 |
| BREMBO | 09.7512.80, 27020 |
| Bridgestone | 7015520 |
| CALIFORNIA DRUM & ROTOR | 102075 |
| CENTRIC | 120.66006, 121.66006, 125.66006, 126.66006CSL, 126.66006CSR, 126.66006SL, 126.66006SR, 127.66006CL, 127.66006CR, 127.66006L, 127.66006R, 128.66006CL, 128.66006CR, 128.66006L, 128.66006R, 227.66006L, 227.66006R, 320.66006, 320.66006F |
| CENTURY | 5036 |
| CERTIFIED DIVISION | HR122 |
| CONTINENTAL-CONTITECH | CW26701 |
| Casting Numbers | 210226-C, 211503-DP, 325297, 4449, 55501, 635036 |
| Centric Parts | 120.66006, 121.66006, 125.66006, 126.66006CSL, 126.66006CSR, 126.66006SL, 126.66006SR, 127.66006CL, 127.66006CR, 127.66006L, 127.66006R, 128.66006CL, 128.66006CR, 128.66006L, 128.66006R, 227.66006L, 227.66006R, 320.66006, 320.66006F |
| DAYTON WALTHER | D4680 |
| DELPHI | RB534 |
| DURA CORP | BR5550, BR555002 |
| DuraGo | BR5550 |
| EIS BRAKES | D5036 |
| EUCLID | E-8429 |
| EUROROTOR | 5550 |
| FADE FREE | 102075 |
| GM | 14056179, 15684318, 1613287, 18027660 |
| GREN | 681502 |
| GUARDIAN | 52-102075 |
| GUNITE | G14680 |
| General Motors | 14056179, 15684318, 1613287, 18027660 |
| HOLLANDER | 1139 |
| KELSEY HAYES | 14621, 14680 |
| MAGMA PRODUCTS | PMR225171 |
| MCI | 5028, 5029, 5532 |
| MERITOR | R44141261, R448429 |
| MIDAS | BR1020 |
| MIGHTY DISTRIBUTING SYSTEM | 5550 |
| MONROE BRAKES | BD102075 |
| NEWTEK AUTOMOTIVE | 5532, 5550 |
| Newtek Automotive USA | 5532, 5550 |
| Omnicraft | QBRR46 |
| PARTS MASTER | P102075 |
| POWERSTOP | AR8606EVC |
| PRAEFKE | 141188, 141261 |
| PROMAX | 14-5550 |
| QUALIS | 5550 |
| QUALITEE INTERNATIONAL | 64-93-660 |
| QUALITY BRAND | 5550 |
| ROADMATES | 526036 |
| ROCKHILL | 5550 |
| SEARS | 1777, 510446 |
| STANDARD ROTORS AND DRUMS | 5550 |
| THE UNIVERSAL GROUP | 101500 |
| TRUSTAR | 493660, R93660 |
| TopNotch | TN5036GEO |
| UAP | 5550 |
| Universal | 101500 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50321 |
| WABCO | PS102075 |
| WABCO - Archived | PS102075 |
| WAGNER | BD102075 |
| WAGNER BRAKE | BD102075 |
| WINHERE | 442177, YH2177 |
| WORLDPAC | 1427-732069 |
RAYBESTOS 5036R Fits Vehicles
- Oldsmobile Toronado (1979-1985)
- Oldsmobile Bravada (1991-1994, 1996)
- GMC Syclone (1991)
- GMC Typhoon (1992-1993)
- GMC Sonoma (1991-1997)
- GMC S15 (1983-1990)
- GMC Jimmy (1992-1997)
- GMC S15 Jimmy (1983-1991)
- Chevrolet S10 (1983-1997)
- Chevrolet Blazer (1995-1997)
- Chevrolet S10 Blazer (1983-1994)
- Cadillac Seville (1980-1985)
- Cadillac Eldorado (1979-1985)
- Buick Riviera (1979-1985)
