(888) 312-8812 Login SignupRAYBESTOS 76646R Raybestos R-Line Brake Rotor
MSRP: $65.18
$4849
Save $16.69
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9
RAYBESTOS 76646R Part Description
Manufacturer
Product Description

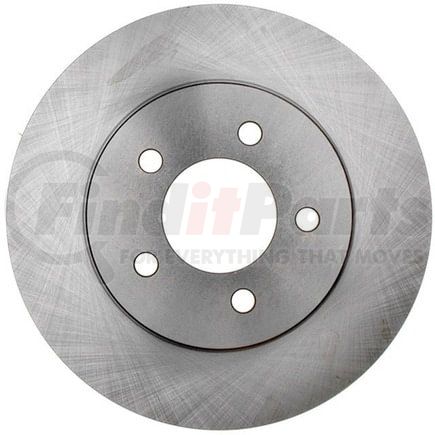

Raybestos R-Line Brake Rotor
Application Summary
2000-1996 Dodge Grand Caravan Front, 2000-1996 Dodge Caravan Front, 2000-1996 Chrysler Town & Country Front, 2000-1996 Plymouth Grand Voyager Front, 2000-1996 Plymouth Voyager Front, 2001-1999,1997 Plymouth Prowler Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 76646R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.9 IN |
| Center Hole Diameter | 73.65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.551 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 11.1 IN |
| Outside Diameter | 281.95 MM |
| Overall Height | 1.5 IN |
| Overall Height | 38.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366981 |
RAYBESTOS 76646R Cross References
| Brand | Part Number |
|---|---|
| 829352366981 | |
| ADVANCE AUTO PARTS | 145152, YH145152, YH145152C, YH145152P |
| AMERICAN REMANUFACTURED | 789-40039, 89-32047, 89-40039 |
| AUTOPART INTERNATIONAL | 25552 |
| AUTOSPECIALTY | AR8739, AR8739E |
| AUTOXTRA | 125505, 8076646 |
| AUTOZONE | 5373, 5373B, 5373DG, DL5373 |
| BENDIX | 145152 |
| BOSCH | RBR5373 |
| BRAKEBEST | 16010137, 76646, 76646FZN, 76646R, 76646RGS, 81-125502, BD125502 |
| BREMBO | 09.7367.10, 27006 |
| Brembo | 09.7367.11 |
| Bridgestone | 7002429 |
| CALIFORNIA DRUM & ROTOR | 125502 |
| CENTRIC | 120.67039, 120.67039CRY, 121.67039, 125.67039, 126.67039CSL, 126.67039CSR, 126.67039SL, 126.67039SR, 127.67039L, 127.67039R, 128.67039CL, 128.67039CR, 128.67039L, 128.67039R, 227.67039L, 227.67039R, 320.67039, 320.67039F, 321.67039 |
| CHRYSLER | 04683260, 04683432, 04721820, 04721820AD, 04721820AE, 04815797, 4683260, 4721820, 4721820AD, 4721820AE, 4683432, 4815797 |
| CONTINENTAL-CONTITECH | CW24153 |
| Casting Numbers | 210803-C, 325180, 53731 |
| Centric Parts | 120.67039, 120.67039CRY, 121.67039, 125.67039, 126.67039CSL, 126.67039CSR, 126.67039SL, 126.67039SR, 127.67039L, 127.67039R, 128.67039CL, 128.67039CR, 128.67039L, 128.67039R, 227.67039L, 227.67039R, 320.67039, 320.67039F, 321.67039 |
| DELPHI | RB343 |
| DURA CORP | BR5373 |
| Dura Corp | BR5346 |
| DuraGo | BR5346 |
| EUROROTOR | 5373 |
| GREN | 602802 |
| GUARDIAN | 52-125502 |
| MAGMA PRODUCTS | PMR145140 |
| MIDAS | BR2016 |
| MIGHTY DISTRIBUTING SYSTEM | 5373 |
| MONROE BRAKES | BD125502 |
| MOPAR | V5011820AB |
| NEWTEK AUTOMOTIVE | 5373 |
| Newtek Automotive USA | 5373 |
| Omnicraft | QBRR45 |
| PARTS MASTER | P125502 |
| POWERSTOP | AR8739EVC |
| PROMAX | 14-5373 |
| QUALIS | 5373 |
| QUALITEE INTERNATIONAL | 64-91-060 |
| QUALITY BRAND | 5373 |
| QUINTON HAZELL | BDC5145 |
| STANDARD ROTORS AND DRUMS | 5373 |
| THE UNIVERSAL GROUP | 102152 |
| TRUSTAR | 491060, R91060 |
| TRW | 4508 |
| UAP | 5373 |
| Ultra Brake | 5373 |
| Universal | 102152 |
| VAICO | V3380001, V3380004 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50875 |
| WABCO | PS125502 |
| WABCO - Archived | PS125502 |
| WAGNER | BD125502, BD125502E |
| WAGNER BRAKE | BD125502 |
| WINHERE | 442174, YH2174 |
| WORLDPAC | 1407-25552 |
| Wagner Brake | BD125502E |
RAYBESTOS 76646R Fits Vehicles
- Plymouth Voyager (1991-1993, 1996-2000)
- Plymouth Grand Voyager (1991-2000)
- Plymouth Prowler (1997, 1999-2001)
- Dodge Grand Caravan (1991-2001)
- Dodge Caravan (1991-1994, 1996-2000)
- Chrysler Voyager (2000)
- Chrysler Town & Country (1992-2000)
- Chrysler Prowler (2001-2002)
- Chrysler Grand Voyager (2000)
