RAYBESTOS 56629R Part Description
Manufacturer
Product Description

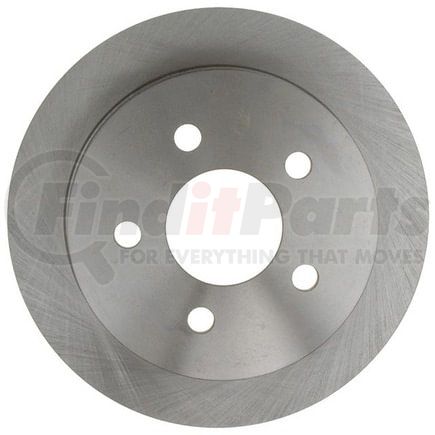

Raybestos R-Line Brake Rotor
Application Summary
2005-2000 Chevrolet Impala Rear, 2005-1997 Buick Century Rear, 2005-1999 Pontiac Grand Am Rear, 2005-2000 Chevrolet Monte Carlo Rear, 2003-1997 Pontiac Grand Prix Rear, 2005-1998 Chevrolet Venture Rear, 2004-1997 Buick Regal Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 56629R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.78 IN |
| Center Hole Diameter | 70.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.646 IN |
| Mounting Bolt Hole Circle Diameter | 118 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.435 IN |
| Nominal Thickness | 11.05 MM |
| Outside Diameter | 10.94 IN |
| Outside Diameter | 277.9 MM |
| Overall Height | 1.98 IN |
| Overall Height | 50.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352364321 |
RAYBESTOS 56629R Cross References
| Brand | Part Number |
|---|---|
| 829352364321 | |
| ACDELCO | 177-831 |
| ADVANCE AUTO PARTS | 145155, YH145155, YH145155C, YH145155P |
| AMERICAN REMANUFACTURED | 789-36058, 89-36058 |
| API | 1407-25660 |
| AUTOPARTSOURCE | 593030 |
| AUTOSPECIALTY | AR8258, AR8258E |
| AUTOXTRA | 1255039, 125506, 8056629, AX55039 |
| AUTOZONE | 55039, 55039B, 55039DG, 55039DL, DL55039 |
| BENDIX | 145155 |
| BOSCH | RBR55039 |
| BRAKE HEADQUARTERS | BR55596 |
| BRAKEBEST | 25010535, 56629, 56629FZN, 56629R, 56629RGS, 81-125506, BD125506 |
| BREMBO | 08.8463.10, 08.8463.85, 27190 |
| Brembo | 08.8463.11 |
| CALIFORNIA DRUM & ROTOR | 125506 |
| CENTRIC | 120.62058, 120.62058CRY, 121.62058, 125.62058, 125.62058CRY, 126.62058CSL, 126.62058CSR, 126.62058SL, 126.62058SR, 127.62058CL, 127.62058CR, 127.62058L, 127.62058R, 128.62058CL, 128.62058CR, 128.62058L, 128.62058R, 227.62058L, 227.62058R, 320.62058, 321.62058 |
| COMMAND AUTOMOTIVE | 107235 |
| CONTINENTAL-CONTITECH | CW11133 |
| Casting Numbers | 18021353, 325279, 5162, 550391 |
| Centric Parts | 120.62058, 120.62058CRY, 121.62058, 125.62058, 125.62058CRY, 126.62058CSL, 126.62058CSR, 126.62058SL, 126.62058SR, 127.62058CL, 127.62058CR, 127.62058L, 127.62058R, 128.62058CL, 128.62058CR, 128.62058L, 128.62058R, 227.62058L, 227.62058R, 320.62058, 321.62058 |
| DELPHI | RB499 |
| DURA CORP | BR55039, BR5503902 |
| DuraGo | BR55039, BR5503902 |
| EUROROTOR | 55114 |
| GM | 18021354, 18060232, 19303830 |
| GREN | 684901 |
| GUARDIAN | 52-125506 |
| General Motors | 18021354, 18060232, 19303830 |
| MAGMA PRODUCTS | PMR225206 |
| MIDAS | BR2018 |
| MIGHTY DISTRIBUTING SYSTEM | 55039 |
| MONROE BRAKES | BD125506 |
| NEWTEK AUTOMOTIVE | 55039 |
| Newtek Automotive USA | 55039 |
| Omnicraft | QBRR134 |
| PARTS MASTER | P125506 |
| PERFORMANCE FRICTION | 278.050.01 |
| POWERSTOP | AR8258EVC |
| PROMAX | 14-55039, 20-55039 |
| QUALIS | 55039 |
| QUALITY BRAND | 55039, Q4008 |
| QUINTON HAZELL | BDC4798 |
| STANDARD ROTORS AND DRUMS | 55039 |
| THE UNIVERSAL GROUP | 101706 |
| TRUSTAR | 493030 |
| TopNotch | TN56629GEO |
| UAP | 2055039, 55039 |
| Ultra Brake | 55145 |
| Universal | 101706 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51188 |
| WABCO | PS125506 |
| WABCO - Archived | PS125506 |
| WAGNER | BD125506, BD125506E |
| WAGNER BRAKE | BD125506, BD125506E |
| WINHERE | 661186, YH1186 |
| WORLDPAC | 1407-25660 |
RAYBESTOS 56629R Fits Vehicles
- Buick Riviera (1999)
- Pontiac Trans Sport (1997-1999)
- Pontiac Montana (1999-2001)
- Pontiac Grand Prix (1997-2003)
- Pontiac Grand Am (1999-2005)
- Oldsmobile Intrigue (1998-2002)
- Oldsmobile Alero (1999-2004)
- Chevrolet Venture (1998-2005)
- Chevrolet Monte Carlo (2000-2005)
- Chevrolet Impala (2000-2005)
- Buick Regal (1997-2004)
- Buick Century (1997-2005)
