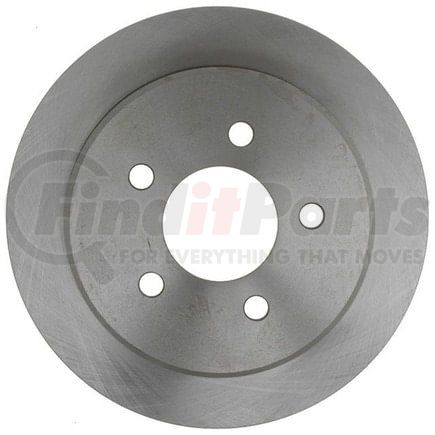

(888) 312-8812 Login SignupRAYBESTOS 66565R Raybestos R-Line Brake Rotor
$7049
Limited availability at this price!
In Stock
Get as soon as Tuesday, Sep 22
RAYBESTOS 66565R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2004-1998 Ford Ranger Rear, 2001-1995 Ford Explorer Rear, 2002-2001 Ford Explorer Sport Trac Rear, 2001-1997 Mercury Mountaineer Rear, 2002-2001 Ford Explorer Sport Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 66565R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.8 IN |
| Center Hole Diameter | 71.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.433 IN |
| Discard Thickness | 11 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.578 IN |
| Mounting Bolt Hole Diameter | 14.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.475 IN |
| Nominal Thickness | 12.05 MM |
| Outside Diameter | 11.22 IN |
| Outside Diameter | 285 MM |
| Overall Height | 2.3 IN |
| Overall Height | 58.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352365731 |
RAYBESTOS 66565R Cross References
| Brand | Part Number |
|---|---|
| 829352365731 | |
| ADVANCE AUTO PARTS | 145052, YH145052, YH145052C, YH145052P |
| AMERICAN REMANUFACTURED | 789-42052, 89-42052 |
| AUTOPART INTERNATIONAL | 25472 |
| AUTOSPECIALTY | AR8552, AR8552E |
| AUTOXTRA | 125463, 8066565, AX54032 |
| AUTOZONE | 54032, 54032B, 54032DG, DL54032 |
| BENDIX | 145052 |
| BOSCH | RBR54032 |
| BRAKE HEADQUARTERS | BR54673 |
| BRAKEBEST | 20010309, 66565, 66565FZN, 66565R, 66565RGS, 81-125463, BD125463 |
| BREMBO | 08.7518.80, 27045 |
| Brembo | 08.7518.81 |
| Bridgestone | 7002440 |
| CALIFORNIA DRUM & ROTOR | 125463 |
| CENTRIC | 120.65052, 120.65052CRY, 121.65052, 121.65052CRY, 125.65052, 126.65052CSL, 126.65052CSR, 126.65052SL, 126.65052SR, 127.65052CL, 127.65052CR, 127.65052L, 127.65052R, 128.65052R, 128.65052CL, 128.65052CR, 128.65052L, 227.65052L, 227.65052R, 320.65052F, 320.65052, 321.65052 |
| CONTINENTAL-CONTITECH | CW12700 |
| Casting Numbers | 210809-C, 325210 |
| Centric Parts | 120.65052, 120.65052CRY, 121.65052, 121.65052CRY, 125.65052, 126.65052CSL, 126.65052CSR, 126.65052SL, 126.65052SR, 127.65052CL, 127.65052CR, 127.65052L, 127.65052R, 128.65052CL, 128.65052CR, 128.65052L, 128.65052R, 227.65052L, 227.65052R, 320.65052, 320.65052F, 321.65052 |
| DELPHI | RB419 |
| DURA CORP | BR54032 |
| DuraGo | BR54032 |
| EUROROTOR | 54136 |
| FORD | 3760664, F5TZ2C026A, F5TZ2C026A2, YL2Z2C026BA |
| GREN | 648001 |
| GUARDIAN | 52-125463 |
| MAGMA PRODUCTS | PMR205166 |
| MIDAS | BR1994 |
| MIGHTY DISTRIBUTING SYSTEM | 54032 |
| MONROE BRAKES | BD125463 |
| MOTORCRAFT | BRR59 |
| NEWTEK AUTOMOTIVE | 54032 |
| Newtek Automotive USA | 54032 |
| PARTS MASTER | P125463 |
| POWERSTOP | AR8552EVC |
| PROMAX | 14-54032 |
| QUALIS | 54032 |
| QUALITEE INTERNATIONAL | 64-92-190 |
| QUALITY BRAND | 54032, Q4125 |
| STANDARD ROTORS AND DRUMS | 54032 |
| THE UNIVERSAL GROUP | 102576 |
| TRUSTAR | 492190, R92190 |
| TopNotch | TN66565GEO |
| UAP | 54032 |
| Ultra Brake | 54136 |
| Universal | 102576 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51010 |
| WABCO | PS125463 |
| WABCO - Archived | PS125463 |
| WAGNER | BD125463, BD125463E |
| WAGNER BRAKE | BD125463, BD125463E |
| WINHERE | 441122, YH1122 |
| WORLDPAC | 1407-25472 |
RAYBESTOS 66565R Fits Vehicles
- Ford Explorer Sport (2001-2002)
- Ford Explorer Sport Trac (2001-2002)
- Mercury Mountaineer (1997-2001)
- Ford Ranger (1998-2004)
- Ford Explorer (1995-2001)
