Centric 130.66009 - Centric Premium Brake Master Cylinder
$9249
MSRP: $103.95
Save: $11.46
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

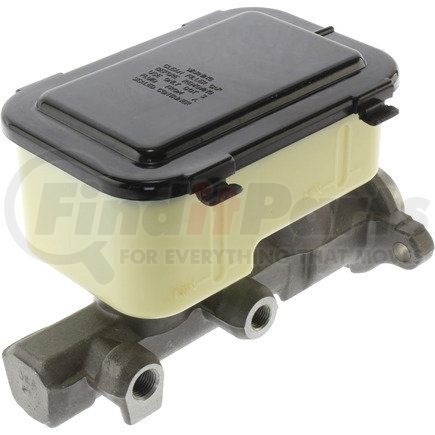

Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
Product Attributes
| Publication Bore [cntrc] | 36mm - 25.4mm |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | 9/16"-18 inv |
| Push Rod: Length / Depth [cntrc] In | dmpl |
| Weight [cntrc] Kgs | 1.5 |
| Master Cylinder Bore Diameter Secondary [cntrc] In | 1.000 |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Boss, Nipple Or Port: Rear: #a [cntrc] | 1/2"-20 inv |
| Weight [cntrc] Lbs | 3.3 |
| Master Cylinder Bore Diameter Secondary [cntrc] Mm | 25.400 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Premium |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 0.500 IN |
| Secondary Outlet Thread Diameter | 0.5625 IN |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| 9275 | 18 IN |
| 9276 | 20 IN |
| Bore Type | Stepped |
| Secondary Outlet Thread Size | 9/16"-18 |
| Primary Outlet Thread Size | 1/2"-20 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 36.000 MM |
| Primary Bore Diameter | 1.417 IN |
| Secondary Bore Diameter | 25.400 MM |
| Secondary Bore Diameter | 1.000 IN |
| Reservoir Style | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890009689 |
Part Interchanges
CENTRIC 130.66009 Cross Reference
We have 2 alternatives for the 130.66009 by CENTRIC:
Fits Vehicles
- GMC R1500 (1987)
- GMC C1500 (1981-1986)
- Chevrolet R10 (1987)
- Chevrolet C10 (1981-1986)
