(888) 312-8812 Login SignupRAYBESTOS 76316R Raybestos R-Line Brake Rotor
$3699
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Jul 28
RAYBESTOS 76316R Part Description
Manufacturer
Product Description

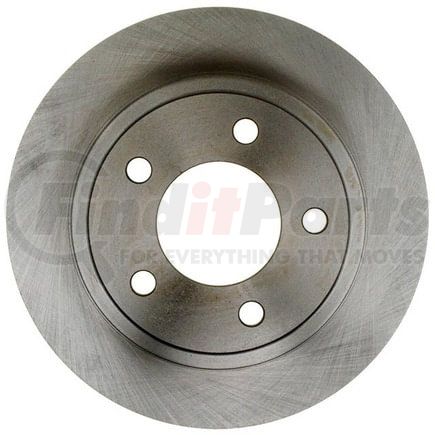

Raybestos R-Line Brake Rotor
Application Summary
2004-1993 Dodge Intrepid Rear, 2004-1993 Chrysler Concorde Rear, 2004-1999 Chrysler 300M Rear, 2001-1999,1997-1994 Chrysler LHS Rear, 2004-1993 Chrysler Intrepid Rear, 1997-1993 Eagle Vision Rear, 1996-1994 Chrysler New Yorker Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 76316R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.89 IN |
| Center Hole Diameter | 73.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.409 IN |
| Discard Thickness | 10.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.552 IN |
| Mounting Bolt Hole Diameter | 14 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 10.635 IN |
| Outside Diameter | 270.15 MM |
| Overall Height | 1.895 IN |
| Overall Height | 48.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366776 |
RAYBESTOS 76316R Cross References
| Brand | Part Number |
|---|---|
| 829352366776 | |
| ADVANCE AUTO PARTS | 141849, YH141849, YH141849C, YH141849P |
| AMERICAN REMANUFACTURED | 789-32035, 89-32035, 89-32046 |
| AUTOPART INTERNATIONAL | 25617 |
| AUTOSPECIALTY | AR8335, AR8335E, AR8346 |
| AUTOXTRA | 125306, 8076316, AX5356 |
| AUTOZONE | 5356, 5356B, 5356DG, DL5356 |
| BENDIX | 141849 |
| BOSCH | 16010151, RBR5356 |
| BRAKE HEADQUARTERS | BR53076 |
| BRAKE PRO | 4616316 |
| BRAKEBEST | 16010151, 76316, 76316FZN, 76316R, 76316RGS, 81-125306, BD125306 |
| BREMBO | 08.8457.85, 27183 |
| Brembo | 08.8457.81 |
| Bridgestone | 7000920 |
| CALIFORNIA DRUM & ROTOR | 125306 |
| CENTRIC | 120.63035, 121.63035, 125.63035, 126.63035CSL, 126.63035CSR, 126.63035SL, 126.63035SR, 127.63035L, 127.63035R, 128.63035L, 128.63035R, 227.63035L, 227.63035R, 320.63035, 320.63035F |
| CENTURY | 7055 |
| CHRYSLER | 04582225, 04779111AC, 04779018, 04779111AA, 04779111AB, 4779111AB, 4779111AC |
| COMMAND AUTOMOTIVE | 107031 |
| CONTINENTAL-CONTITECH | CW12701 |
| Casting Numbers | 210562-C, 325169, 53561, KH130975 |
| Centric Parts | 120.63035, 121.63035, 125.63035, 126.63035CSL, 126.63035CSR, 126.63035SL, 126.63035SR, 127.63035L, 127.63035R, 128.63035L, 128.63035R, 227.63035L, 227.63035R, 320.63035, 320.63035F |
| DELPHI | RB373 |
| DURA CORP | BR5356, BR535602 |
| DuraGo | BR5356 |
| EAGLE (CARS) | 4582225, 4779018, 4779111AA |
| EIS BRAKES | D17575 |
| EUROROTOR | 5356 |
| Eagle | 4582225, 4779018, 4779111AA |
| GREN | 602001 |
| GUARDIAN | 52-125306 |
| MAGMA PRODUCTS | PMR143039 |
| MIDAS | BR1891 |
| MIGHTY DISTRIBUTING SYSTEM | 5356 |
| MONROE BRAKES | BD125306 |
| NEWTEK AUTOMOTIVE | 5356 |
| Newtek Automotive USA | 5356 |
| PARTS MASTER | P125306 |
| POWERSTOP | AR8335EVC |
| PROMAX | 14-5356 |
| QUALIS | 5356 |
| QUALITEE INTERNATIONAL | 64-91-740 |
| QUALITY BRAND | 5356, Q4052 |
| ROADMATES | 526168 |
| STANDARD ROTORS AND DRUMS | 5356 |
| THE UNIVERSAL GROUP | 103560 |
| TRUSTAR | 491740, R91740 |
| UAP | 5356 |
| Universal | 103560 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50688 |
| WABCO | PS125306 |
| WABCO - Archived | PS125306 |
| WAGNER | BD125306, BD125306E |
| WAGNER BRAKE | BD125306 |
| WINHERE | 441112, YH1112 |
| Wagner Brake | BD125306E |
RAYBESTOS 76316R Fits Vehicles
- Chrysler Intrepid (1993-2004)
- Eagle Vision (1993-1997)
- Dodge Intrepid (1993-2004)
- Chrysler New Yorker (1994-1996)
- Chrysler LHS (1994-1997, 1999-2001)
- Chrysler Concorde (1993-2004)
- Chrysler 300M (1999-2004)
