RAYBESTOS 9003R Part Description
Manufacturer
Product Description

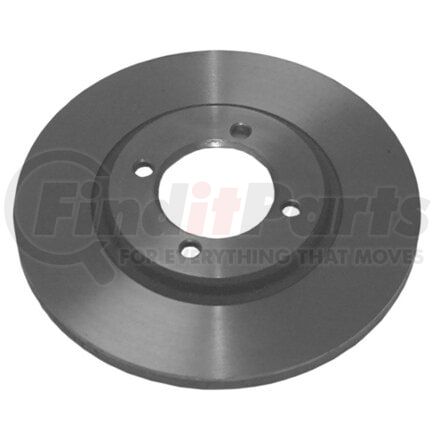

Raybestos R-Line Brake Rotor
Application Summary
1983-1980 Toyota Corolla Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9003R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.52 IN |
| Center Hole Diameter | 64 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.453 IN |
| Discard Thickness | 11.5 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.425 IN |
| Mounting Bolt Hole Circle Diameter | 87 MM |
| Mounting Bolt Hole Diameter | 3.425 IN |
| Mounting Bolt Hole Diameter | 87 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.492 IN |
| Nominal Thickness | 12.5 MM |
| Outside Diameter | 9.015 IN |
| Outside Diameter | 229 MM |
| Overall Height | 0.91 IN |
| Overall Height | 23.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367575 |
RAYBESTOS 9003R Cross References
| Brand | Part Number |
|---|---|
| 829352367575 | |
| ACDELCO | 177-630 |
| ADVANCE AUTO PARTS | 141198, YH141198, YH141198C |
| AMERICAN REMANUFACTURED | 789-22006, 89-22006 |
| AUTOPART INTERNATIONAL | 78090 |
| AUTOSPECIALTY | JBR141, JBR141E |
| AUTOXTRA | 60601 |
| AUTOZONE | 3157, 3157DG |
| AXXIS | 085-6210 |
| Autoxtra | AX3157 |
| BECK/ARNLEY | 080-1986, 083-1986 |
| BENDIX | 141198 |
| BRAKE HEADQUARTERS | BR06187 |
| BRAKE PRO | 4619003 |
| BRAKEBEST | 9003, 9003R, 9003RGS, BD60601 |
| BREMBO | 08.4505.10, 08.4505.20, 25104 |
| CALIFORNIA DRUM & ROTOR | 60601 |
| CENTRIC | 120.44006, 121.44006, 126.44006SL, 126.44006SR |
| CENTURY | 9003 |
| CEW | 1174007 |
| Casting Numbers | 210249-C, 31571, 325065 |
| Centric Parts | 120.44006, 121.44006, 126.44006SL, 126.44006SR |
| DAYTON WALTHER | D4926, D7290 |
| DURA CORP | BR3157 |
| DuraGo | BR3157 |
| EIS BRAKES | D9003 |
| EUROROTOR | TO613 |
| FRATELLI POLETTI | 93YM |
| GIRLING | GR628 |
| GREN | 11301 |
| GUARDIAN | 52-60601 |
| HOLLANDER | 56270 |
| INTERBRAKES | TY111P |
| INTERNATIONAL PARTS SERVICE | 8-8036 |
| ITM ENGINE COMPONENTS | 1601503 |
| KELSEY HAYES | 14926 |
| LAZORLITE | L73-1331 |
| MAREMONT | 7939003 |
| MCI | 4023, 4099Q |
| MIDAS | BR1214 |
| MIGHTY DISTRIBUTING SYSTEM | 3157 |
| MONROE BRAKES | BD60601 |
| MOUNTAIN OFF-ROAD ENTERPRISES | TR23 |
| NEWTEK AUTOMOTIVE | 3157 |
| Newtek Automotive USA | 3157 |
| PARTS MASTER | P60601 |
| QUALIS | 3157 |
| QUALITEE INTERNATIONAL | 64-79-230 |
| QUALITY BRAND | 3157 |
| QUINTON HAZELL | BDC3346 |
| ROADMATES | 526526 |
| ROCKHILL | 3157 |
| SANYO | TR23 |
| SEARS | 1789, 510461 |
| STANDARD ROTORS AND DRUMS | 3157 |
| TEKNOMAC | 11271 |
| THE UNIVERSAL GROUP | 107570 |
| TOYOTA | 4351212120 |
| TRANSPARTS | BR0719 |
| TRUSTAR | 479230, R79230 |
| UAP | 3157 |
| Universal | 107570 |
| VERA | 3401865 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50263 |
| WAGNER | BD60601 |
| WAGNER BRAKE | BD60601 |
| WINHERE | YH1088 |
| WORLDPARTS | W70-143 |
RAYBESTOS 9003R Fits Vehicles
- Toyota Corolla (1980-1983)
