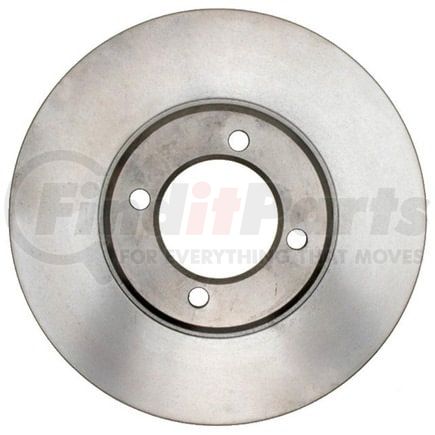

(888) 312-8812 Login SignupRAYBESTOS 9010R Raybestos R-Line Brake Rotor
$2299
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Jul 24
RAYBESTOS 9010R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1979-1970 Toyota Corolla Front, 1975-1971 Toyota Celica Front, 1973-1969 Toyota Corona Front, 1973-1971 Toyota Carina Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9010R Specifications
Product Attributes
| Center Hole Diameter | 2.521 IN |
| Center Hole Diameter | 64.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.425 IN |
| Mounting Bolt Hole Circle Diameter | 87 MM |
| Mounting Bolt Hole Diameter | 0.416 IN |
| Mounting Bolt Hole Diameter | 10.55 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 9.03 IN |
| Outside Diameter | 229.35 MM |
| Overall Height | 0.694 IN |
| Overall Height | 17.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352367605 |
RAYBESTOS 9010R Cross References
| Brand | Part Number |
|---|---|
| 829352367605 | |
| ACCURATE | 22620 |
| ADVANCE AUTO PARTS | 141064, YH141064, YH141064C |
| AMERICAN REMANUFACTURED | 789-22005, 89-22005, 89-22010 |
| AUTOSPECIALTY | JBR140, JBR140E |
| AUTOXTRA | AX3111 |
| AUTOZONE | 3111, 3111DG |
| AXXIS | 085-5670 |
| BAP GEON | 1601512 |
| BECK/ARNLEY | 080-0554, 083-0554 |
| BENDIX | 141064 |
| BRAKE HEADQUARTERS | BR06166 |
| BRAKE PRO | 4619010 |
| BRAKEBEST | 9010, 9010R, 9010RGS, BD97052 |
| BREMBO | 08.2266.10, 25025 |
| CALIFORNIA DRUM & ROTOR | 60479, 97052 |
| CENTRIC | 120.44005, 121.44005 |
| CENTURY | 9010 |
| CERTIFIED DIVISION | R39 |
| CEW | 1174006 |
| Casting Numbers | 210149-C, 31111, 325644 |
| Centric Parts | 120.44005, 121.44005 |
| DAYTON WALTHER | D4855, D7093 |
| DURA CORP | BR3111 |
| DuraGo | BR3111 |
| EIS BRAKES | D9010 |
| EUROROTOR | TO602 |
| FADE FREE | 97052 |
| FIRESTONE | 85573, 5207-757-5 |
| FRATELLI POLETTI | 93YA |
| GIRLING | GR623 |
| GREN | 10301 |
| HOLLANDER | 51038 |
| INTERBRAKES | TY011P |
| INTERNATIONAL PARTS SERVICE | 8-8015 |
| ITM ENGINE COMPONENTS | 1601512 |
| KELSEY HAYES | 14855 |
| LAZORLITE | L73-1552 |
| MAGMA PRODUCTS | PMR563001 |
| MAREMONT | 7939010 |
| MCI | 4002 |
| MIDAS | BR1090 |
| MIGHTY DISTRIBUTING SYSTEM | 3111 |
| MOPAR | 3-1334 |
| MOUNTAIN OFF-ROAD ENTERPRISES | TR2 |
| NEWTEK AUTOMOTIVE | 3111 |
| Newtek Automotive USA | 3111 |
| PRAEFKE | 141064 |
| QUALIS | 3111 |
| QUALITEE INTERNATIONAL | 64-79-020 |
| QUALITY BRAND | 3111 |
| QUINTON HAZELL | BDC3337 |
| ROADMATES | 526501 |
| ROCKHILL | 3111 |
| SANYO | TR2, TR8 |
| SEARS | 1791 |
| STANDARD ROTORS AND DRUMS | 3111 |
| TEKNOMAC | 11255 |
| THE UNIVERSAL GROUP | 107110 |
| TOYOTA | 4351220030, 4351220032 |
| TRANSPARTS | BR0706 |
| TRUSTAR | 479020, R79020 |
| UAP | 3111 |
| Universal | 107110 |
| VERA | 3400934 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50100 |
| WAGNER | BD97052 |
| WAGNER BRAKE | BD60479, BD97052, BD97321, BD97371 |
| WINHERE | YH1073 |
| WORLDPARTS | W70-148 |
RAYBESTOS 9010R Fits Vehicles
- Toyota Corona (1969-1973)
- Toyota Carina (1971-1973)
- Toyota Corolla (1970-1979)
- Toyota Celica (1971-1975)
