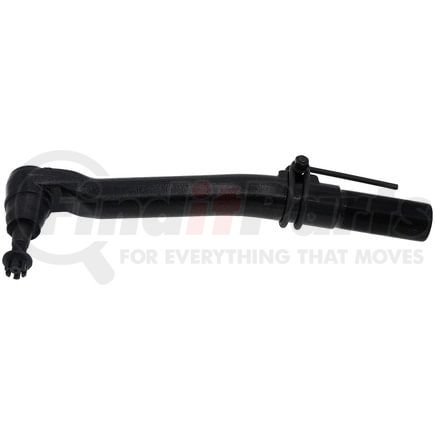

DORMAN TO85361XL - Steering Tie Rod End
$9799
In stock
limited availability at this price!
. Learn more
DORMAN part description
California Proposition 65 Warning
California Proposition 65 Warning
Product Description
Steering Tie Rod End
Application Summary
Ford F-350 Super Duty 2022-08, Ford F-450 Super Duty 2022-11, Ford F-550 Super Duty 2022-11
Features & Benefits
- Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Steering, Tie, Rod, End, Ties, Rods, Ends
Product Attributes
| Length | 392 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Finish | Coated |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 48.85 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 10 MM |
| Height | 123.7 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 39 MM |
| Adjustable | No |
| Cone Outside Diameter | 16.1 MM |
| Bearing Material | Metal |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Regular |
| Stud Type | Taper |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.25 MM |
| Dust Boot Material | Polychloroprene |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 2 |
| End 1 Thread Diameter | 1.563 IN |
| Ball Joint Included | Yes |
| Bolts Included | Yes |
| End 1 Attachment Type | Threaded |
| End 2 Attachment Type | Threaded |
| Head Drive Type | Smooth |
| Material | Steel |
| Outside Diameter | 39 mm |
| Package Contents | 1 Tie Rod End; 1 Ball Joint; 2 Nuts; 1 Bolt; 1 Zerk Fitting |
| Thread Pitch | 1.5 mm |
| Tie Rod End Thread Diameter | 1 9/16 in |
| Weight | 10.2 lb |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8302300000 |
| UPC | 00889245898104 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
Part Interchanges
Fits Vehicles
- Ford F-450 Super Duty (2011-2020)
- Ford F-550 Super Duty (2011-2020)
- Ford F-350 Super Duty (2008-2020)
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
