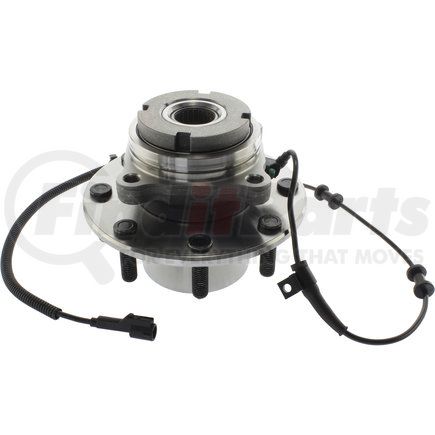

Centric 402.65022 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$28649
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Off-set [cntrc] Mm | 2.026 |
| Inner Mount Pilot [cntrc] In | 4.478 |
| Off-set [cntrc] In | 51.460 |
| Inner Mount Pilot [cntrc] Mm | 113.740 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] In | 6.693 |
| Notes [cntrc] | Drive Spline = 55t |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Bolt Circle Diameter [cntrc] Mm | 170.000 |
| Mounting Hole Qty [cntrc] | 4 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 124.710 MM |
| Wheel Pilot Diameter | 4.910 IN |
| Brake Pilot Diameter | 128.800 MM |
| Brake Pilot Diameter | 5.071 IN |
| Wheel Stud Quantity | 10 |
| Wheel Studs Included | Yes |
| Flange Diameter | 8.000 IN |
| Flange Diameter | 203.200 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890564515 |
Part Interchanges
CENTRIC 402.65022 Cross Reference
We have 3 alternatives for the 402.65022 by CENTRIC:
Fits Vehicles
- Ford F-550 Super Duty (1999)
- Ford F-350 Super Duty (1999-2000)
