(888) 312-8812 Login SignupCENTRIC 402.65012 Centric Premium Hub and Bearing Assembly; With Integral ABS
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 402.65012 Part Description
Manufacturer
Product Description

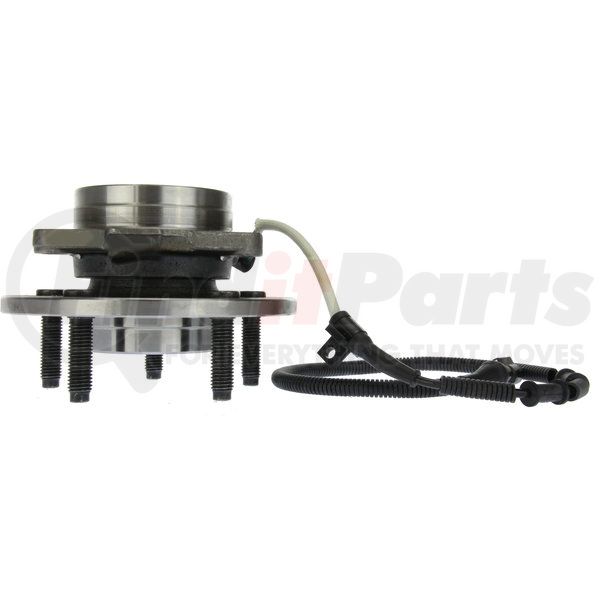

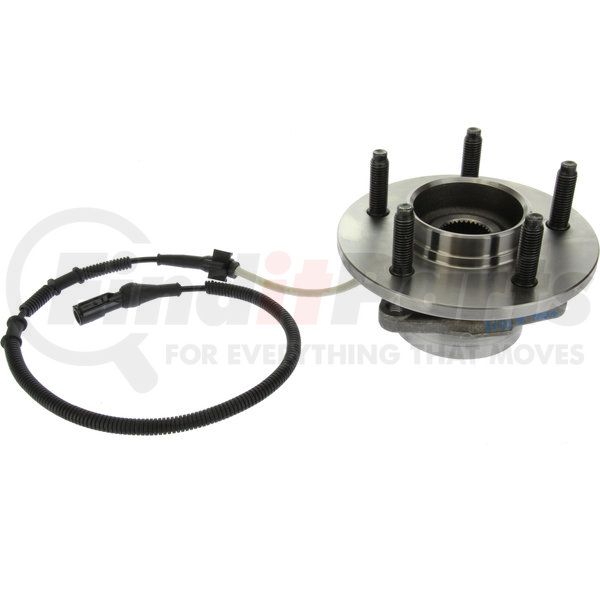

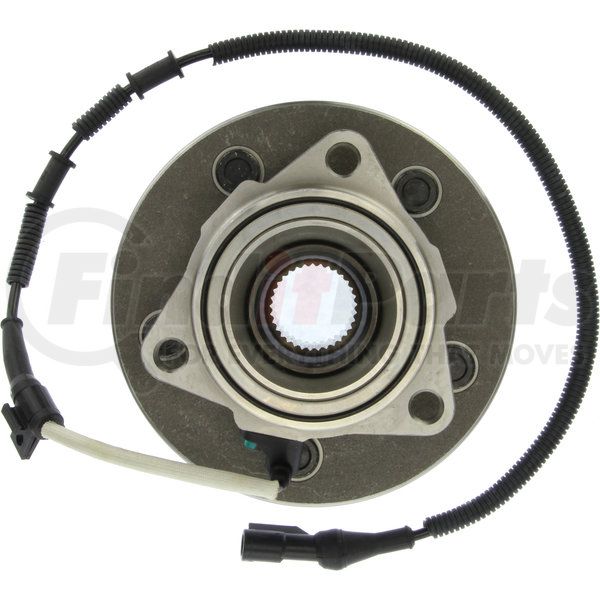

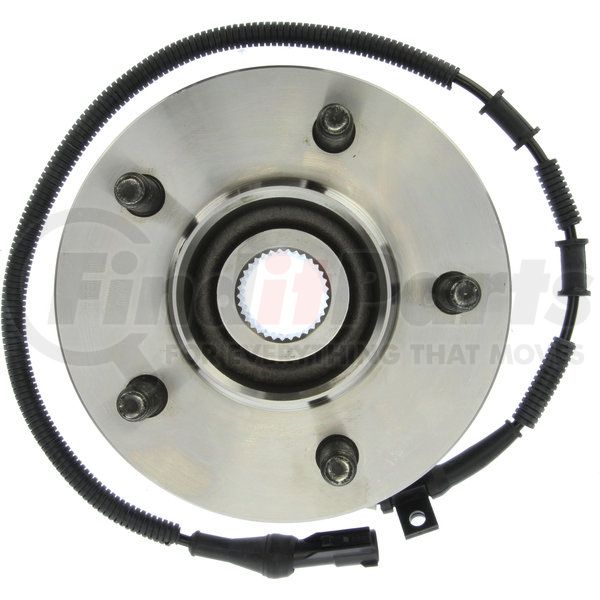

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 402.65012 Specifications
Product Attributes
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Bolt Circle Diameter [cntrc] In | 5.315 |
| Inner Mount Pilot [cntrc] Mm | 99.300 |
| Bolt Circle Diameter [cntrc] Mm | 135.000 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 2.000 |
| Off-set [cntrc] In | 49.230 |
| Off-set [cntrc] Mm | 1.938 |
| Product Grade [cntrc] | Premium |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 3.910 |
| Mounting Hole Qty [cntrc] | 3 |
| Spline Quantity | 33 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 86.510 MM |
| Wheel Pilot Diameter | 3.406 IN |
| Brake Pilot Diameter | 89.870 MM |
| Brake Pilot Diameter | 3.538 IN |
| Wheel Stud Quantity | 8 |
| Wheel Studs Included | Yes |
| Flange Diameter | 7.124 IN |
| Flange Diameter | 180.940 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890564416 |
CENTRIC 402.65012 Cross References
| Brand | Part Number |
|---|---|
| BCA | WE61560 |
| GMB | 7250074 |
| MEVOTECH | H515029 |
| N/A | H515029, 515029, BR930423, FW729, WE61560, 1L34 1104AA, 1L341104AA, YL3Z 1104AA, YL3Z1104AA, 6L3Z 1104A, 6L3Z1104A |
| NTN | WE61560 |
| TIMKEN | 515029 |
CENTRIC 402.65012 Fits Vehicles
- Ford F-150 (1999-2003)
