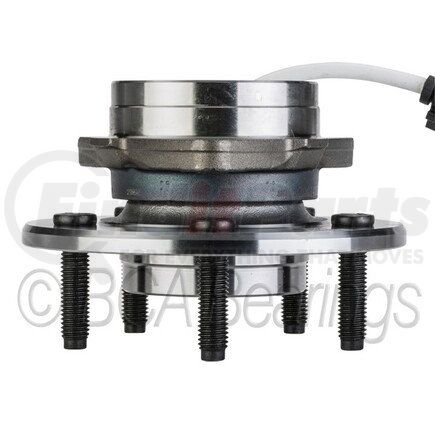

(888) 312-8812 Login SignupNTN WE61560 Wheel Bearing and Hub Assembly - Steel, Natural, with Wheel Studs
Tap to view 9 more
$30249
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
NTN WE61560 Part Description
Manufacturer
Product Description
OE form, fit & function wheel hub unit.
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
NTN WE61560 Specifications
Product Attributes
| Spline Quantity | 33 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 86.7 MM |
| Brake Pilot Diameter | 89.9 MM |
| Wheel Stud Quantity | 5 |
| Flange Shape | Triangle |
| Anti Lock Braking System | Yes |
| Drive Type | Driven |
| Flange Offset | 49.2 MM |
| Flange Diameter | 7.126 IN |
| Bolt Circle Diameter | 134.9 MM |
| Anti Lock Braking System Type | Encoder with sensor |
| Bearing Generation | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.961 |
| Knuckle Bolt Circle Diameter (Millimeters) | 126.0 |
| Knuckle Bolt Hole Size | M14X1.5 |
| Wheel Stud Size | M12X2.0 MM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810615609 |
NTN WE61560 Cross References
| Brand | Part Number |
|---|---|
| Alltech Automotive | 515029 |
| Autopart International | 141144822 |
| CENTRIC | 402.65012 |
| CRS Automotive | NT515029 |
| Centric Parts | 402.65012, 402.65012E |
| DT Components | 515029 |
| Drive Tech America | NT515029 |
| DuraGo | 29515029 |
| Fenco | WH515029 |
| Ford | 6L3Z1104A, G2MZ1104U, XL3Z1104AA, YL3Z1104AA, 1L341104AA, YL341104AA |
| GMB | 7250074 |
| GSP | 116029 |
| MOOG Chassis Products | 515029 |
| MPA | WH515029 |
| Magneti Marelli | 1AMH515029 |
| Mevotech | H515029 |
| Motorcraft | NHUB20, HUB24 |
| Parts Master | PM515029 |
| Parts Plus | P515029 |
| Power Train | PT515029 |
| Precision Bearing | 515029 |
| Raybestos Brakes | 715029 |
| SKF | BR930423 |
| Schaeffler | FW729, 101990 |
| Timken | 515029 |
| ValuePro | 515029 |
| WJB | WA515029 |
NTN WE61560 Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford F-150 (2000-2004)
