CENTRIC 402.62004 Part Description
Manufacturer
Product Description

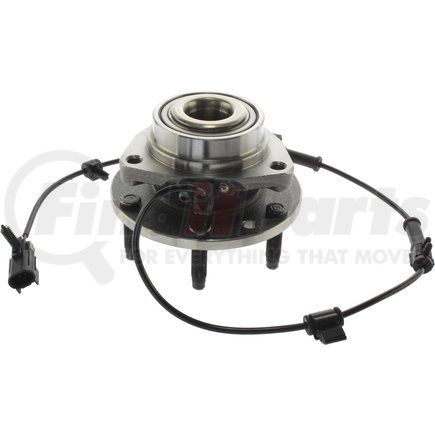

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 402.62004 Specifications
Product Attributes
| Thread Pitch To Wheel Mounting [cntrc] In | 18.000 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Off-set [cntrc] In | 47.020 |
| Mounting Hole Qty [cntrc] | 3 |
| Notes [cntrc] | Rretaining Holes 2x 0.393 |
| Inner Mount Pilot [cntrc] Mm | 91.900 |
| Off-set [cntrc] Mm | 1.851 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Inner Mount Pilot [cntrc] In | 3.618 |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Product Grade [cntrc] | Premium |
| Spline Quantity | 27 |
| Wheel Stud Size | 0.563 IN |
| Wheel Pilot Diameter | 77.750 MM |
| Wheel Pilot Diameter | 3.061 IN |
| Brake Pilot Diameter | 78.920 MM |
| Brake Pilot Diameter | 3.107 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.919 IN |
| Flange Diameter | 150.340 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 00805890564089 |
CENTRIC 402.62004 Cross References
CENTRIC 402.62004 Fits Vehicles
- Chevrolet Trailblazer EXT (2002-2006)
- GMC Envoy XL (2002-2006)
- GMC Envoy XUV (2004-2005)
- Saab 9-7x (2005-2009)
- Chevrolet SSR (2003-2006)
- Buick Rainier (2004-2007)
- Oldsmobile Bravada (2002-2004)
- GMC Envoy (2002-2009)
- Chevrolet Trailblazer (2002-2009)
- Isuzu Ascender (2003-2008)
