(888) 312-8812 Login SignupCENTRIC 402.65011 Centric Premium Hub and Bearing Assembly; With Integral ABS
Tap to view 1 more
$296.47
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 402.65011 Part Description
Manufacturer
Product Description

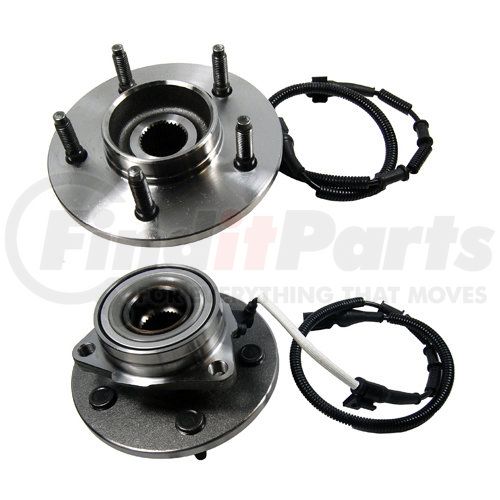

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable

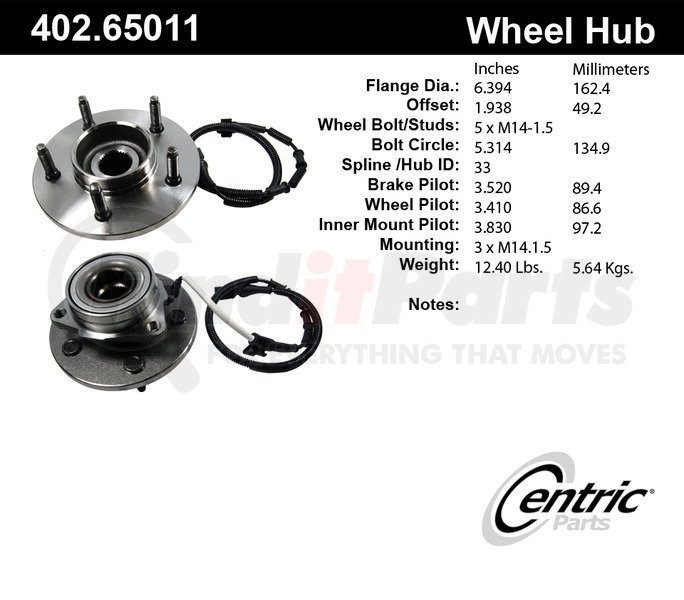

CENTRIC 402.65011 Specifications
Product Attributes
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Inner Mount Pilot [cntrc] In | 3.830 |
| Mounting Hole Qty [cntrc] | 3 |
| Bolt Circle Diameter [cntrc] In | 5.315 |
| Inner Mount Pilot [cntrc] Mm | 97.280 |
| Bolt Circle Diameter [cntrc] Mm | 135.000 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Off-set [cntrc] In | 49.230 |
| Off-set [cntrc] Mm | 1.938 |
| Product Grade [cntrc] | Premium |
| Mouting Thread Size [cntrc] Mm | 14.000 |
| Spline Quantity | 33 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 86.610 MM |
| Wheel Pilot Diameter | 3.410 IN |
| Brake Pilot Diameter | 89.410 MM |
| Brake Pilot Diameter | 3.520 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.394 IN |
| Flange Diameter | 162.410 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 00805890564409 |
CENTRIC 402.65011 Cross References
CENTRIC 402.65011 Fits Vehicles
- Ford F-150 (1997-1999)
