CENTRIC 407.66015 Part Description
Manufacturer
Product Description

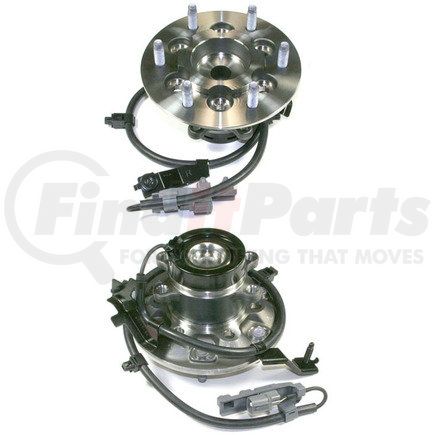

Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
CENTRIC 407.66015 Specifications
Product Attributes
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Inner Mount Pilot [cntrc] Mm | 84.910 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Off-set [cntrc] Mm | 2.642 |
| Product Grade [cntrc] | Premium |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Mounting Hole Qty [cntrc] | 4 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Off-set [cntrc] In | 67.110 |
| Notes [cntrc] | Must Have Sensor Assembly Attached - Rubber covered ABS harness/ 2 metal brackets/ 1 with 1x6M-1.0 bolt - 2nd with 1x8M-1.25 Stud |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 99.490 MM |
| Wheel Pilot Diameter | 3.917 IN |
| Brake Pilot Diameter | 86.260 MM |
| Brake Pilot Diameter | 3.396 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 7.244 IN |
| Flange Diameter | 184.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890568308 |
CENTRIC 407.66015 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | HA590054, H515107, 515107, PT515111, PT515122, FW322, 1517 8883, 15178883 |
CENTRIC 407.66015 Fits Vehicles
- Isuzu i-370 (2007)
- Isuzu i-290 (2007)
- Isuzu i-280 (2006)
- Chevrolet Colorado (2004-2008)
- GMC Canyon (2004-2008)
