CENTRIC part description

Standard Brake Drum FOR
Make Edsel, Ford, Lincoln, Mercury
Model 300, Brougham, Colony Park, Commuter, Corsair, Country Sedan, Country Squire, Custom, Custom 300, Custom 500, Fairlane, Galaxie, Galaxie 500, LTD, Marauder, Mark III, Marquis, Montclair, Monterey, Park Lane, Ranch Wagon, Ranger, Thunderbird, Victoria, Villager
Year 1957

Product Description

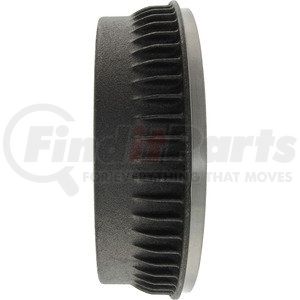

C-Tek Standard Brake Drum

Application Summary

Edsel Corsair 1959, Ranger 1960-1959, Villager 1960-1959, Ford 300 1963, Country Sedan 1968-1965, Country Squire 1968-1960, Custom 1968-1964, Custom 300 1960, Custom 500 1968-1964, Fairlane 1961, Galaxie 1967-1960, Galaxie 500 1968-1962, LTD 1968-1965, Ranch Wagon 1965, Ranch Wagon 1968-1967, Thunderbird 1960-1958, Thunderbird 1968-1967, Victoria 1960, Lincoln Mark III 1968, Mercury Brougham 1967, Colony Park 1968-1966, Commuter 1968-1966, Marauder 1968-1963, Marquis 1968-1967, Montclair 1968-1964, Monterey 1957, Monterey 1968-1961, Park Lane 1968-1964

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum

Product Attributes

Maximum Brake Diameter (Discard) 282.400 MM
Bolt Hole Quantity 5
Outside Diameter 325.120 MM
Outer Cooling Fins No
Mounting Hole Diameter 15.494 MM
Nominal Drum Diameter 279.400 MM
Bolt Circle Diameter [cntrc] In 4.500
Bolt Circle Diameter [cntrc] Mm 114.300
Friction Surface Width [cntrc] In 2.840
Friction Surface Width [cntrc] Mm 72.136
Height [cntrc] In 3.660
Height [cntrc] Mm 92.964
Hub Hole / Register [cntrc] In 2.430
Hub Hole / Register [cntrc] Mm 61.722
Misc Holes [cntrc] 5
Mounting Type [cntrc] Floating
Weight [cntrc] Kgs 8.409
Weight [cntrc] Lbs 18.500

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890052159

CENTRIC 123.61003 Cross Reference

We have 4 alternatives for the 123.61003 by CENTRIC:

Fits Vehicles

  • Lincoln Mark III (1968)
  • Ford Victoria (1960)
  • Ford 300 (1963)
  • Edsel Ranger (1959-1960)
  • Ford Custom 300 (1960)
  • Ford Custom (1964-1968)
  • Edsel Villager (1959-1960)
  • Edsel Corsair (1959)
  • Mercury Park Lane (1964-1968)
  • Mercury Monterey (1957, 1961-1968)
  • Mercury Montclair (1964-1968)
  • Mercury Marquis (1967-1968)
  • Mercury Marauder (1963-1968)
  • Mercury Commuter (1966-1968)
  • Mercury Colony Park (1966-1968)
  • Mercury Brougham (1967)
  • Ford Thunderbird (1958-1960, 1967-1968)
  • Ford Ranch Wagon (1965, 1967-1968)
  • Ford LTD (1965-1968)
  • Ford Galaxie 500 (1962-1968)
  • Ford Galaxie (1960-1967)
  • Ford Fairlane (1961)
  • Ford Custom 500 (1964-1968)
  • Ford Country Squire (1960-1968)
  • Ford Country Sedan (1965-1968)

Formed in 2017, Centric® brings two of the industry’s leading undercar parts manufacturers, AP Emissions Technologies and Centric Brakes, under one brand. The merger combines more than 90 years’ worth of experience in aftermarket performance exhaust solutions with market leadership in brakes and chassis systems, resulting in an extensive portfolio of undercar components made available to distribution partners worldwide. From brake discs to catalytic converters, APC-Centric products make use of high-quality materials precision engineering to provide reliable performance at a reasonable cost to the customer. Also, as part of the larger APC Automotive Technologies group, APC-Centric has the competitive advantage of vertically-integrated supply chain and access to a global network of R&D, testing, and manufacturing facilities and customer support channels.
