Centric 400.62004 - Centric Premium Hub and Bearing Assembly without ABS
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

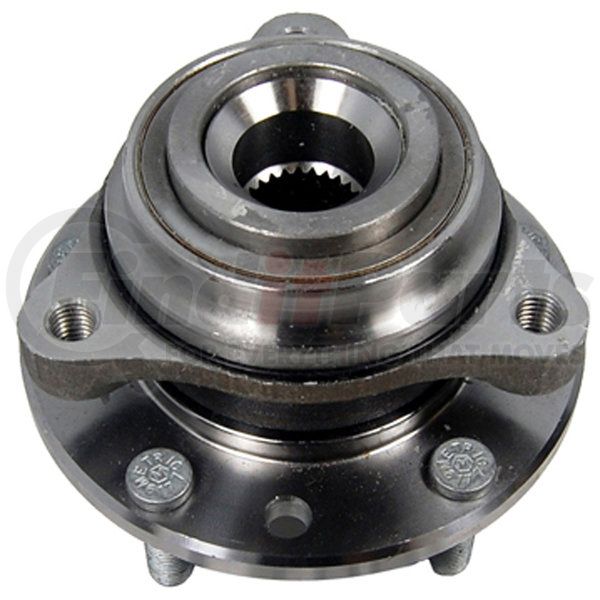

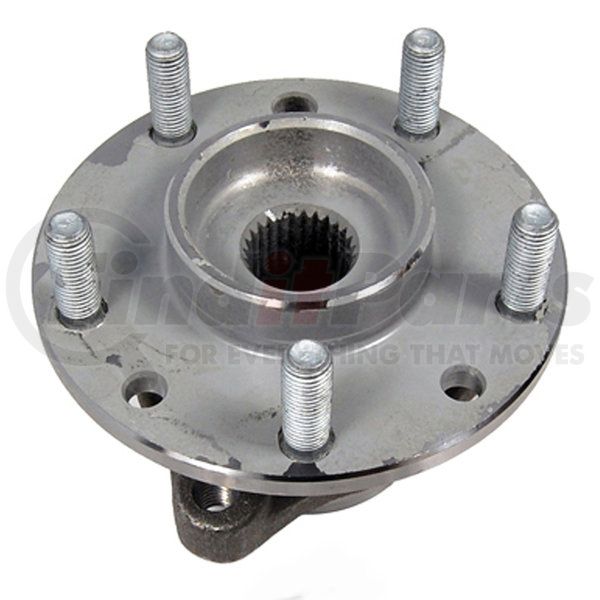

Centric Premium Hub and Bearing Assembly without ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Mounting Hole Qty [cntrc] | 3 |
| Inner Mount Pilot [cntrc] Mm | 91.970 |
| Notes [cntrc] | Flange Holes 1 x 0.490", 2 x 395" |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Inner Mount Pilot [cntrc] In | 3.621 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Off-set [cntrc] Mm | 1.860 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Off-set [cntrc] In | 47.240 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Spline Quantity | 27 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 70.100 MM |
| Wheel Pilot Diameter | 2.760 IN |
| Brake Pilot Diameter | 70.610 MM |
| Brake Pilot Diameter | 2.780 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.594 IN |
| Flange Diameter | 142.090 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890563426 |
Part Interchanges
Fits Vehicles
- Chevrolet Corvette (1984-1996)
