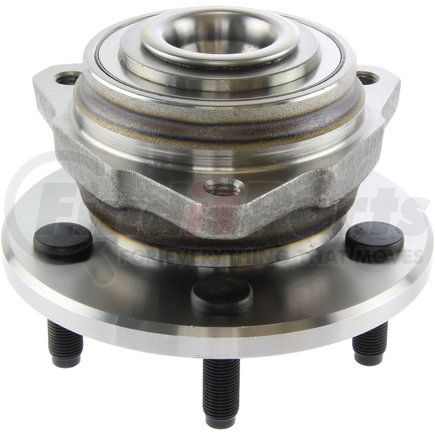

(888) 312-8812 Login SignupCENTRIC 400.58005E C-Tek Standard Hub and Bearing Assembly without ABS
Tap to view 4 more
$93.99
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 400.58005E Part Description
Manufacturer
Product Description
C-Tek Standard Hub and Bearing Assembly without ABS
Features & Benefits
- High Quality Replacement Components. High quality steel and surface finishes reduce noise and extend service life . Exact engineering ensures smooth installation
- Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
- Gen 1
- Gen 2
- Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
- Gen 3
- Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable
CENTRIC 400.58005E Specifications
Product Attributes
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Product Grade [cntrc] | Premium |
| Thread Pitch To Wheel Mounting [cntrc] In | 20.000 |
| Inner Mount Pilot [cntrc] In | 3.940 |
| Mounting Hole Qty [cntrc] | 3 |
| Off-set [cntrc] Mm | 2.115 |
| Off-set [cntrc] In | 53.720 |
| Inner Mount Pilot [cntrc] Mm | 100.080 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Mounting Thread Pitch [cntrc] Mm | 1.750 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Spline Quantity | 27 |
| Wheel Stud Size | 0.500 IN |
| Wheel Pilot Diameter | 71.370 MM |
| Wheel Pilot Diameter | 2.810 IN |
| Brake Pilot Diameter | 71.860 MM |
| Brake Pilot Diameter | 2.829 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 6.044 IN |
| Flange Diameter | 153.520 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890595236 |
CENTRIC 400.58005E Cross References
CENTRIC 400.58005E Fits Vehicles
- Jeep Liberty (2002-2005)
