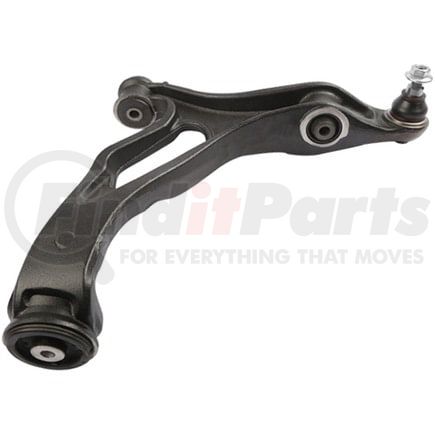

(888) 312-8812 Login SignupDELPHI TC6842 Control Arm and Ball Joint Assembly
Tap to view 1 more
$30049
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC6842 Part Description
Suspension Control Arm and Ball Joint Assembly - Front, Left, Lower, Forged Steel
DELPHI TC6842 Specifications
Product Attributes
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 14.350 IN |
| Control Arm Maximum Width | 364.50 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.827 IN |
| Ball Joint Stud Length | 21.00 MM |
| Control Arm Maximum Length | 16.142 IN |
| Control Arm Maximum Length | 410.00 MM |
| Mounting Hole Diameter | 0.555 IN |
| Mounting Hole Diameter | 14.10 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604377703 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6842 Part Interchanges
| Brand | Part Number |
|---|---|
| Porsche | 955 341 017 61 |
DELPHI TC6842 Fits Vehicles
- Audi Q7 (2010)
- Volkswagen Touareg (2007-2010)
- Porsche Cayenne (2008-2010)
DELPHI TC6842 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
