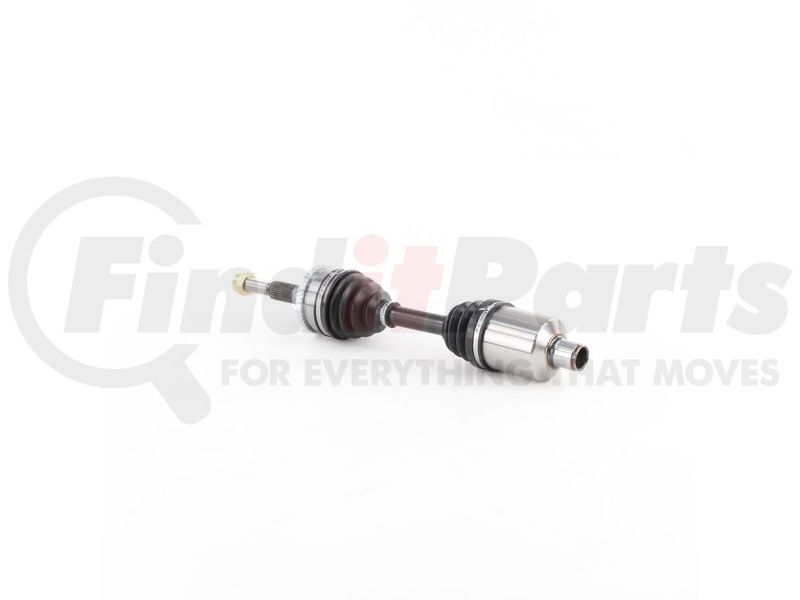

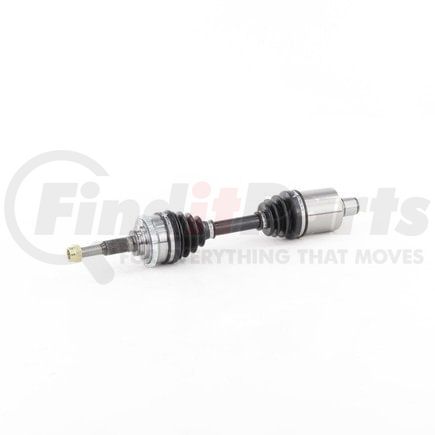

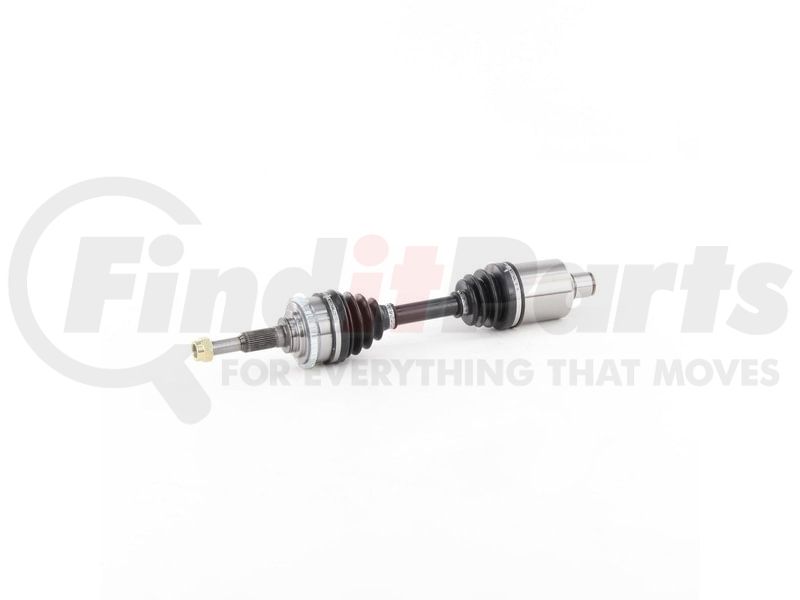

TrakMotive GM-8041 - CV Axle Shaft
- Part Number
- GM-8041
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .8 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1.67 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 34 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.26 |
| Overall Compressed Length (mm) | 515 |
| Axle Nut Socket Size | 30 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084030412 |
Part Interchanges
- ARC 80-2495
- EMPI 80-1328
- Car Components Technologies (CCT) 9535
- Mevotech CV5304
- Carquest 410381
- Carquest 800381
- USA Industries 702988
- USA Industries AX-2988
- Prestige Autotech 1015
- American Remanufactured 40-16179S
- Diversified Shafts Solutions 1223N
- Drive Tech America GM-6179A
- Fenwick CV3073
- CARDONE Reman 60-1123
- CARDONE Reman 66-1123
- OEM Part Number 26018519
- OEM Part Number 26018521
- OEM Part Number 26034302
- OEM Part Number 26059859
- ODM GC-8-8553A
- TrakMotive GM-8041
- ProTech OL10502
- 410381
- NCV10043
- 70211
- 179041
- 92495
Fits Vehicles
- Pontiac Grand Am (1994-1998)
- Pontiac 6000 (1984, 1986-1988)
- Oldsmobile Achieva (1994-1998)
- Chevrolet Corsica (1994-1996)
- Chevrolet Beretta (1994-1996)
- Buick Skylark (1994-1998)
