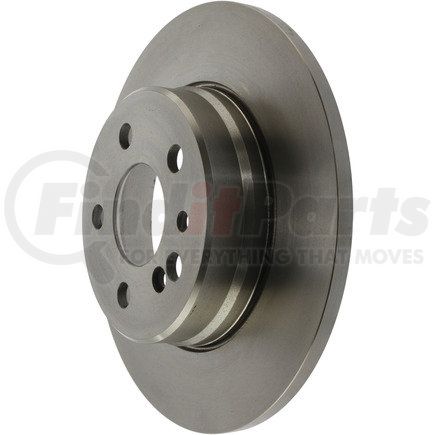

CENTRIC 125.35022 Centric Premium High Carbon Alloy Brake Rotor

★★★★★ (0)
Centric 125.35022 Disc Brake Rotor Centric Premium High Carbon Alloy Brake Rotor
CENTRIC
Tap to view 4 more

$74.46

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 125.35022 Part Description

Manufacturer

CENTRIC

Product Description

Centric Premium High Carbon Alloy Brake Rotor

Features & Benefits

  • Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
  • Painted hat and outer edge for corrosion resistance
  • Painted Hat and Outer Edge
  • Optimal Surface Finish
  • Optimal surface finish for consistent stopping feel from the first stop
  • Advanced Metallurgy
  • Advanced metallurgy for optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • OE vane design and plate thickness for heat capacity and strength
  • Low Initial Lateral Run-Out
  • Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
  • Precision Balance
  • Precision balance for vibration free performance

CENTRIC 125.35022 Specifications

Product Attributes

Product Grade [cntrc]Premium
Disc Mounting [cntrc]Floating / DIH
Weight [cntrc] Kgs5.860
Weight [cntrc] Lbs12.890
California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Misc Holes [cntrc]2
Discard Thickness9.800 MM
Discard Thickness0.386 IN
Nominal Thickness0.472 IN
Nominal Thickness12.000 MM
Hat FinishPainted
Overall Height2.362 IN
Overall Height60.000 MM
Outside Diameter290.000 MM
Outside Diameter11.417 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorSolid
Nominal Drum Diameter164.000 MM
Nominal Drum Diameter6.457 IN
Bearings IncludedNo
Center Hole Diameter67.000 MM
Center Hole Diameter2.638 IN
Mounting Bolt Hole Circle Diameter112.000 MM
Mounting Bolt Hole Circle Diameter4.409 IN
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter17.000 MM
Stud/Lug Hole Diameter0.669 IN

Additional Information

Harmonized Tariff Code (HTS)8708305030
Harmonized Tariff Code (Schedule B)8708300050
NAFTA Preference Criterion CodeB
Country of Origin (Primary)IT
UPC00805890263241

CENTRIC 125.35022 Cross References

BrandPart Number
ATE BRAKE PRODUCTS412129
N/A1.2824.5.4, 0832593, BD125604, 34113, 25171, 34113G, 106564, A1404230612, 1404230612, 145248, 96763P, 86763, 4886763, DDF560, DF2594, 8974021, 142439, EBR433, 400.1423.00
RAYBESTOS96763, 96763R
Raybestos Brakes96763R, 96763

CENTRIC 125.35022 Fits Vehicles

  • Mercedes-Benz 300SD (1992-1993)
  • Mercedes-Benz 300SE (1992-1993)
  • Mercedes-Benz S320 (1994-1999)
  • Mercedes-Benz S350 (1994-1995)
