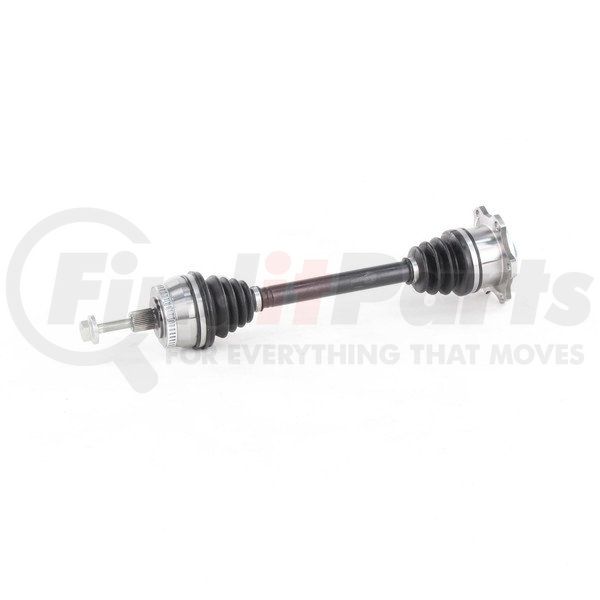

TrakMotive AD-8012 - CV Axle Shaft
- Part Number
- AD-8012
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$12049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 45 |
| ABS Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | 24 |
| Axle Bolt Length (mm) | 93 |
| Axle Bolt Thread Size | M14x1.5 |
| Axle Nut Head Type | N/A |
| Axle Nut Height (in) | N/A |
| Axle Nut Height (mm) | N/A |
| Axle Nut Hex Size (in) | N/A |
| Axle Nut Hex Size (mm) | N/A |
| Axle Nut Included | No |
| Axle Nut Length (in) | N/A |
| Axle Nut Length (mm) | N/A |
| Axle Nut Locking Type | N/A |
| Axle Nut Thread Size | N/A |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 33 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 19.8 |
| Overall Compressed Length (mm) | 503 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084091123 |
Part Interchanges
- ARC 80-5123
- EMPI 80-9023
- Car Components Technologies (CCT) 7502
- Mevotech CV7082
- Carquest 410461
- USA Industries 7090229
- USA Industries AX-90229
- American Remanufactured 40-17257S
- Diversified Shafts Solutions 2311N
- Drive Tech America VW-7257A
- Fenwick CV1729
- CARDONE Reman 60-7199
- CARDONE Reman 66-7199
- IMC 40754064
- Carquest Premium AC NCV23590
- OEM Part Number 8D0407271AC
- OEM Part Number 8D0407271BE
- OEM Part Number 8D0407271DM
- OEM Part Number 8D0407417H
- OEM Part Number 8D0407451DX
- Altrom Group 652713
- ODM AD-8-8541A
- TrakMotive AD-8012
- 410461
- NCV23590
- 77914
- 109012
Fits Vehicles
- Volkswagen Passat (1998-2001)
- Audi A4 Quattro (1997-2000)
- Audi A4 (1997-2001)
