(888) 312-8812 Login SignupCENTRIC 125.34024 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$107.01
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.34024 Part Description
Manufacturer
Product Description

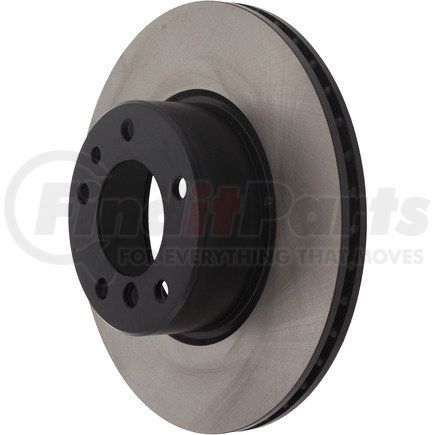

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.34024 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 17.350 |
| Misc Holes [cntrc] | 2 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.890 |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.400 MM |
| Nominal Thickness | 0.862 IN |
| Nominal Thickness | 21.900 MM |
| Hat Finish | Painted |
| Overall Height | 3.008 IN |
| Overall Height | 76.400 MM |
| Outside Diameter | 302.000 MM |
| Outside Diameter | 11.890 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 79.000 MM |
| Center Hole Diameter | 3.110 IN |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.591 IN |
| Stud/Lug Hole Diameter | 15.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890130352 |
CENTRIC 125.34024 Cross References
| Brand | Part Number |
|---|---|
| N/A | BD125036, BD125186, 64 12 250, 3441, 3459, 106659, 3441G, 34111158040, 34111159897, 34111160849, 34111160936, 34116756534, 141667, 86150, 4886150, 194, EBR288, 1.0620.2.4, 125.34024, BW201V, 3441GT, 25301, 96150P, DDF211, DF2556, 8962025, 142108, 90031023, 150.1264.00 |
| RAYBESTOS | 96150, 96150R |
| Raybestos Brakes | 96150R, 96150 |
CENTRIC 125.34024 Fits Vehicles
- BMW 535i (1989-1993)
- BMW 530i (1994-1995)
- BMW 525i (1989-1995)
- BMW 525iT (1993)
