(888) 312-8812 Login SignupCENTRIC 125.33056 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$111.43
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.33056 Part Description
Manufacturer
Product Description

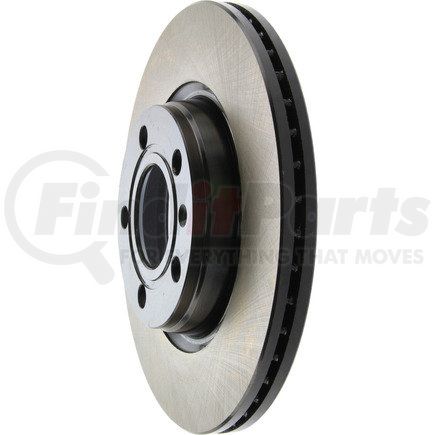

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.33056 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 14.250 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 6.480 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 20.000 MM |
| Discard Thickness | 0.787 IN |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Hat Finish | Painted |
| Overall Height | 1.827 IN |
| Overall Height | 46.400 MM |
| Outside Diameter | 280.000 MM |
| Outside Diameter | 11.024 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.610 IN |
| Stud/Lug Hole Diameter | 15.500 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890130277 |
CENTRIC 125.33056 Cross References
| Brand | Part Number |
|---|---|
| N/A | 1.5834.2.4, BD180082, 422152, 34257, YH145579, 34170, 09719610, 25484, A5891, 106021, 34257G, 8E0615301B, 8E0615301D, 8E0615301P, 145307, 96782P, 980278, 880278, 4886782, 48880278, 86782, DF2806, 142751, EBR617, 90074018, 600.3207.00 |
| RAYBESTOS | 96782, 96782R |
| Raybestos Brakes | 96782, 96782R |
CENTRIC 125.33056 Fits Vehicles
- Audi S8 (2001-2003)
- Volkswagen Passat (1997, 1999-2000)
- Audi A4 (2001-2008)
