(888) 312-8812 Login SignupCENTRIC 125.33048 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.33048 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking

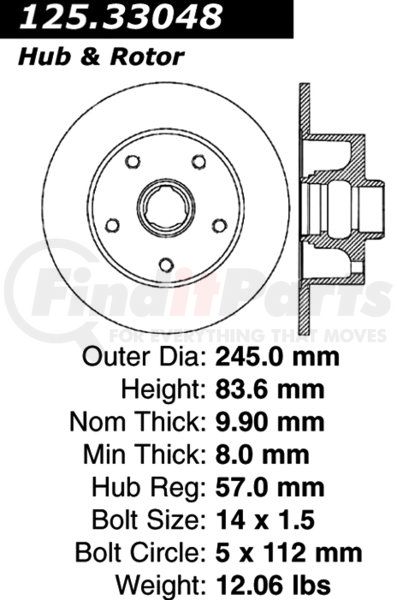

CENTRIC 125.33048 Specifications
Product Attributes
| Weight [cntrc] Lbs | 12.060 |
| Inner Bearing # [cntrc] | 410.91015 |
| Disc Mounting [cntrc] | Hub & Rotor |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.480 |
| Inner Seal # [cntrc] | 417.33000 |
| Misc Holes [cntrc] | 0 |
| Outer Bearing # [cntrc] | 410.91002 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 10.000 MM |
| Nominal Thickness | 0.390 IN |
| Hat Finish | Coated |
| Overall Height | 83.600 MM |
| Overall Height | 3.291 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 245.000 MM |
| Rotor Outside Diameter | 9.646 in |
| Solid Or Vented Type Rotor | Solid |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 57.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Diameter | 14.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Center Hole Diameter | 2.244 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890253921 |
CENTRIC 125.33048 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96863, 96863R |
| N/A | 0832679, BD126019, 410210, 125.33048, 6411300, 34188, 34095, 106013, 8D0615601B, 145154, 86863, DF2771, EBR472, 1.0126.5.4, YH145154, 25193, 96863P, 8996039, 142750, 90073017, 100.1229.00 |
CENTRIC 125.33048 Fits Vehicles
- Audi A4 (1996-2001)
CENTRIC 125.33048 Cross References
We have 2 alternatives for the 125.33048 by CENTRIC:
