(888) 312-8812 Login SignupCENTRIC 125.33038 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
MSRP: $53.96
$2449
Save $29.47
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 30
CENTRIC 125.33038 Part Description
Manufacturer
Product Description

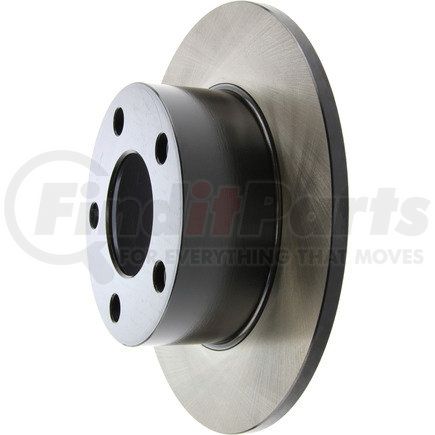

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.33038 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 3.700 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 8.140 |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.000 MM |
| Nominal Thickness | 0.390 IN |
| Nominal Thickness | 10.000 MM |
| Hat Finish | Painted |
| Overall Height | 63.900 MM |
| Overall Height | 2.516 IN |
| Outside Diameter | 245.000 MM |
| Outside Diameter | 9.646 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.610 IN |
| Stud/Lug Hole Diameter | 15.500 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890130208 |
CENTRIC 125.33038 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | SP10201, 410201 |
| N/A | BD125275, 410201, 6411210, 34023, 34023G, 106018, 4A0615601A, 8E0615601, JZW615601A, 145002, 117326, 4886423, 86423, 1174, DF2651, EBR429, D17785, 34023HC, 125.33038, 1.0121.5.4, YH145002, 08574310, 25175, A5974, I1228, 96423P, 19970, 8996031, 142752, 90074011, 100.1217.00 |
| RAYBESTOS | 96423, 96423FZN, 96423R |
| Raybestos Brakes | 96423FZN, 96423, 96423R |
| WAGNER | BD125275 |
CENTRIC 125.33038 Fits Vehicles
- Seat Alhambra (2002-2008)
- Volkswagen Passat (1997-2005)
- Audi A6 Quattro (1995-1998)
- Audi 100 Quattro (1992-1994)
- Audi 100 (1992-1994)
- Audi A6 (1995-2004)
