(888) 312-8812 Login SignupRAYBESTOS 96423FZN Raybestos Element3 Coated Brake Rotor
$2799
Limited availability at this price!
1 Day Lead Time
Get as soon as Thursday, Oct 8
RAYBESTOS 96423FZN Part Description
Manufacturer
Product Description

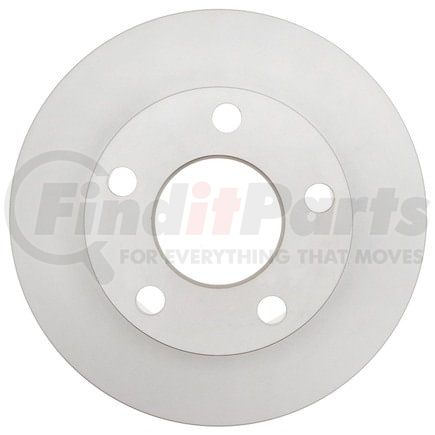

Raybestos Element3 Coated Brake Rotor
Application Summary
2005-1997 Volkswagen Passat Rear, 2004-1995 Audi A6 Rear, 1994-1992 Audi 100 Rear, 1994-1992 Audi 100 Quattro Rear, 1997 Audi S6 Rear, 2008-2002 Seat Alhambra Rear, 2003-2000 Volkswagen Pointer Rear
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 96423FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.593 IN |
| Mounting Bolt Hole Diameter | 15.05 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.395 IN |
| Nominal Thickness | 10.05 MM |
| Outside Diameter | 9.63 IN |
| Outside Diameter | 244.6 MM |
| Overall Height | 2.525 IN |
| Overall Height | 64.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213145311 |
RAYBESTOS 96423FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145002, N100036420ZIC, YH145002, YH145002C, YH145002P |
| ALTROM IMPORTS | 4A0615601A |
| AMERICAN REMANUFACTURED | 789-96031, 89-96031 |
| AUTOPART INTERNATIONAL | 78115 |
| AUTOSPECIALTY | EBR429, EBR429E |
| AUTOXTRA | 125275, 8096423, AX34023 |
| AUTOZONE | 34023, 34023DG, DL34023 |
| BECK/ARNLEY | 080-2477, 080-2777, 083-2477, 083-2788, 083-2777 |
| BENDIX | 145002 |
| BRAKE HEADQUARTERS | BR03076 |
| BRAKEBEST | 14010013, 81-125275, 96423, 96423FZN, 96423R, 96423RGS, BD125275 |
| BREMBO | 08.5743.10, 08.5743.11, 25175 |
| CALIFORNIA DRUM & ROTOR | 125275 |
| CENTRIC | 120.33038, 121.33038, 125.33038, 125.33038CRY, 126.33038CSL, 126.33038CSR, 126.33038SL, 126.33038SR, 127.33038CL, 127.33038CR, 127.33038L, 127.33038R, 128.33038CL, 128.33038CR, 128.33038L, 128.33038R, 320.33038, 320.33038H, 321.33038 |
| CENTURY | 9824 |
| CONTINENTAL-CONTITECH | CW10201 |
| Casting Numbers | 211036-C, 325406 |
| Centric Parts | 120.33038, 121.33038, 125.33038, 125.33038CRY, 126.33038CSL, 126.33038CSR, 126.33038SL, 126.33038SR, 127.33038CL, 127.33038CR, 127.33038L, 127.33038R, 128.33038CL, 128.33038CR, 128.33038L, 128.33038R, 320.33038, 320.33038H, 321.33038 |
| DELPHI | RB330 |
| DURA CORP | BR34023 |
| DuraGo | BR34023 |
| EIS BRAKES | D17785 |
| EUROROTOR | AU252 |
| GREN | 411501 |
| GUARDIAN | 52-125275 |
| MIGHTY DISTRIBUTING SYSTEM | 34023 |
| MONROE BRAKES | BD125275 |
| NAPA BRAKES | SDK6061 |
| NEWTEK AUTOMOTIVE | 34023 |
| Newtek Automotive USA | 34023 |
| PEP BOYS | 34023G |
| POWERSTOP | EBR429EVC |
| PROMAX | 14-34023 |
| QUALIS | 34023 |
| QUALITEE INTERNATIONAL | 64-11-210 |
| QUALITY BRAND | 34023, Q112 |
| QUINTON HAZELL | BDC3929 |
| STANDARD ROTORS AND DRUMS | 34023 |
| THE UNIVERSAL GROUP | 117326 |
| TRUSTAR | 411210, R11210 |
| TRW | DF2651S |
| TopNotch | TN96423GEO |
| UAP | 34023 |
| Universal | 117326 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50846 |
| VOLKSWAGEN | 4A0615601A, 8E0615601 |
| WABCO | PS125275 |
| WABCO - Archived | PS125275 |
| WAGNER BRAKE | BD125275 |
| WINHERE | 661067, YH1067 |
| WORLDPAC | 1407-78115 |
RAYBESTOS 96423FZN Fits Vehicles
- Audi 100 (1992-1994)
- Audi 100 Quattro (1992-1994)
- Audi A6 (1995-2004)
- Audi A6 Quattro (1995-1998)
- Audi S6 (1997)
- Seat Alhambra (2002-2008)
- Volkswagen Passat (1997-2005)
- Volkswagen Pointer (2000-2003)
RAYBESTOS 96423FZN Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 96423FZN Questions & Answers
No questions yet
Be the first to ask a question about this product!
