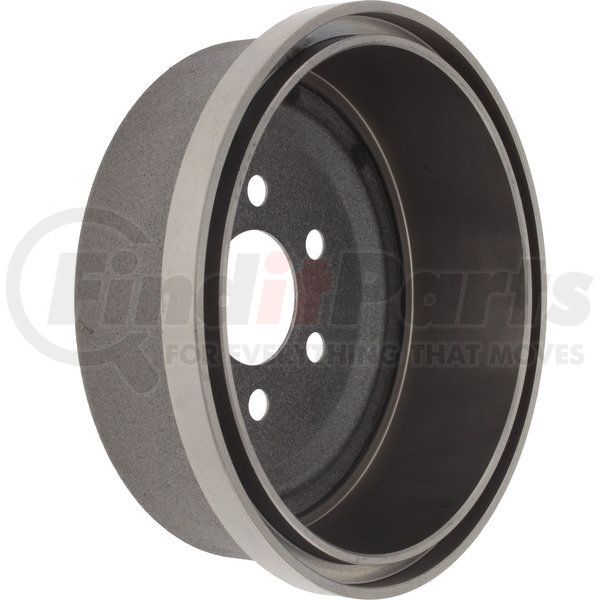

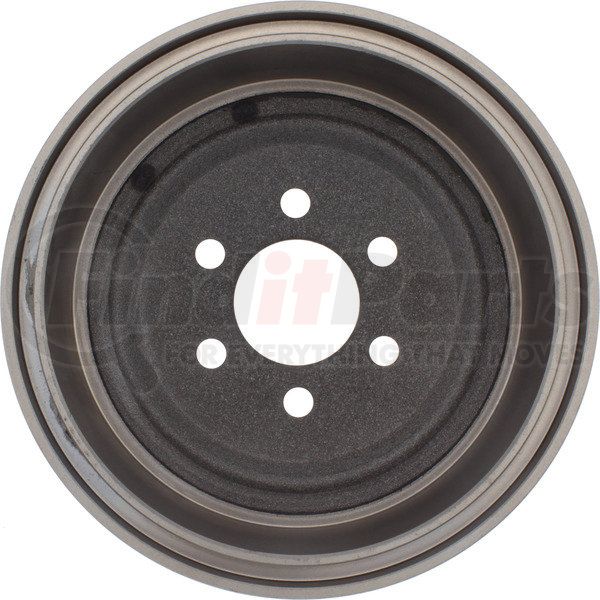

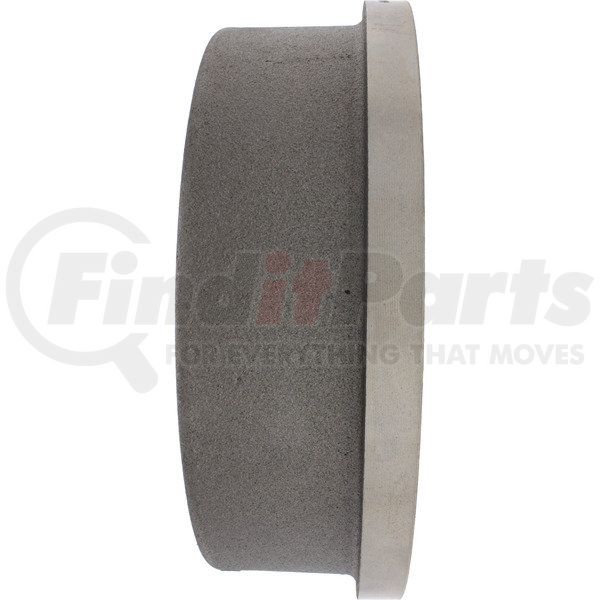

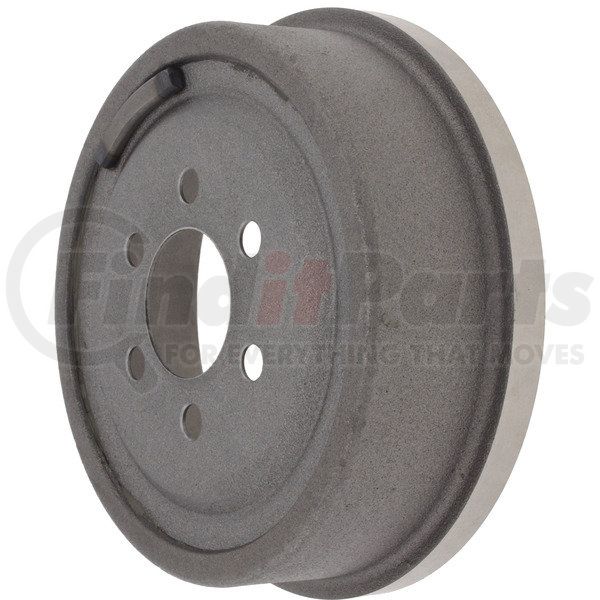

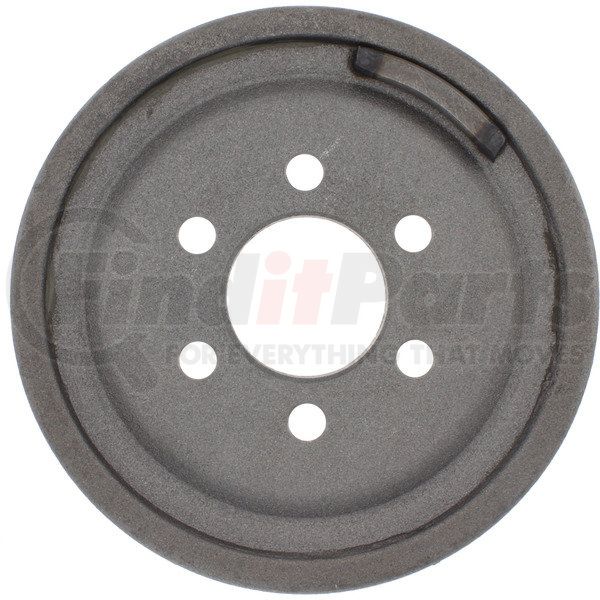

CENTRIC 123.67037 - Standard Brake Drum
$5049
MSRP: $65.99
Save: $15.50
In stock
limited availability at this price!
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
| Make | Dodge |
| Model | Dakota |
| Year | 1999 |
Product Description
C-Tek Standard Brake Drum
Application Summary
Dodge Dakota 1999
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum
Product Attributes
| Maximum Brake Diameter (Discard) | 256.300 MM |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 297.688 MM |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.510 MM |
| Nominal Drum Diameter | 254.000 MM |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Friction Surface Width [cntrc] In | 3.090 |
| Friction Surface Width [cntrc] Mm | 78.486 |
| Height [cntrc] In | 3.590 |
| Height [cntrc] Mm | 91.186 |
| Hub Hole / Register [cntrc] In | 2.830 |
| Hub Hole / Register [cntrc] Mm | 71.882 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] Kgs | 7.273 |
| Weight [cntrc] Lbs | 16.000 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890095057 |
CENTRIC 123.67037 Cross Reference
We have 4 alternatives for the 123.67037 by CENTRIC:
Fits Vehicles
- Dodge Dakota (1999)
