(888) 312-8812 Login SignupCENTRIC 123.67033 C-Tek Standard Brake Drum
Tap to view 4 more
$8399
Limited availability at this price!
In Stock
Get it by Thursday, Jul 30
CENTRIC 123.67033 Part Description
Manufacturer
Product Description

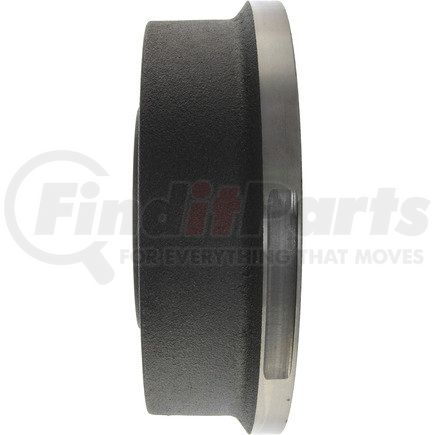

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67033 Specifications
Product Attributes
| Weight [cntrc] Kgs | 10.500 |
| Weight [cntrc] Lbs | 23.100 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 71.882 |
| Hub Hole / Register [cntrc] In | 2.830 |
| Height [cntrc] Mm | 103.124 |
| Height [cntrc] In | 4.060 |
| Friction Surface Width [cntrc] Mm | 76.708 |
| Friction Surface Width [cntrc] In | 3.020 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 280.900 MM |
| Maximum Brake Diameter (Discard) | 11.060 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 327.914 MM |
| Outside Diameter | 12.910 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.764 MM |
| Mounting Hole Diameter | 0.660 IN |
| Nominal Drum Diameter | 280.000 MM |
| Nominal Drum Diameter | 11.020 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890209799 |
CENTRIC 123.67033 Cross References
CENTRIC 123.67033 Fits Vehicles
- Dodge Durango (1998-2002)
- Dodge Dakota (2000-2002)
