CENTRIC 123.67022 Part Description
Manufacturer
Product Description

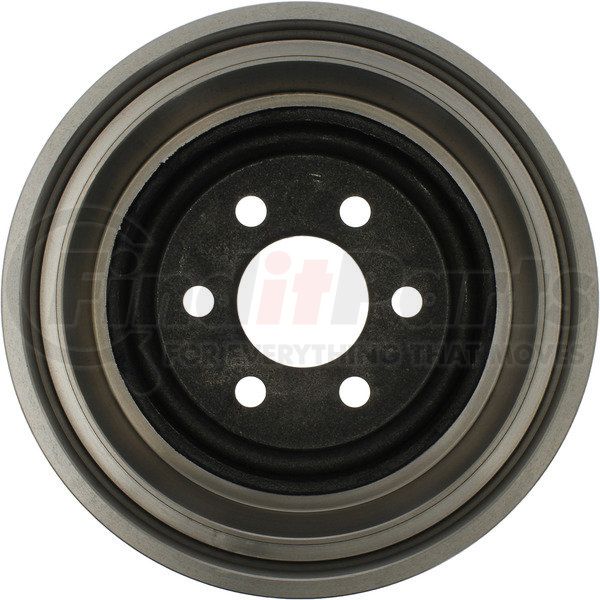

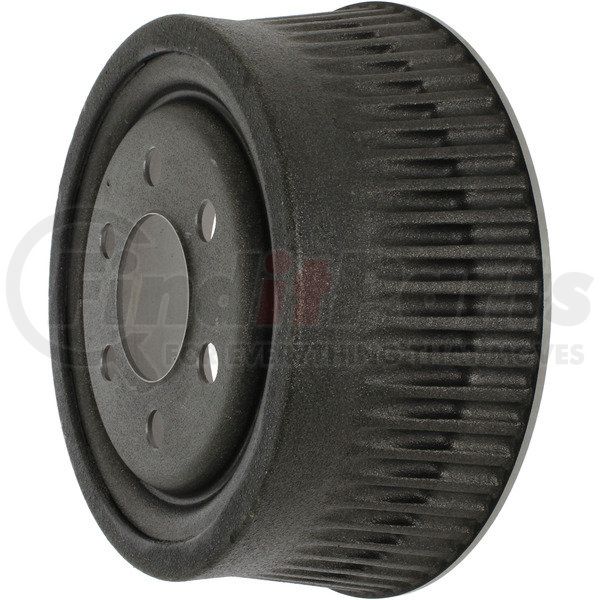

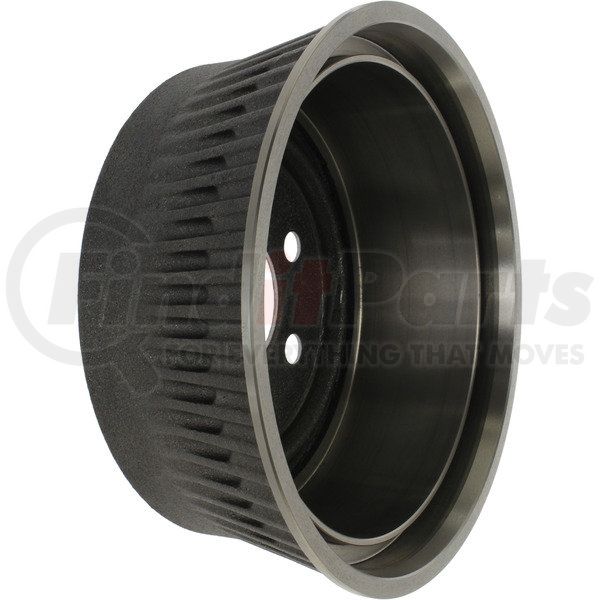

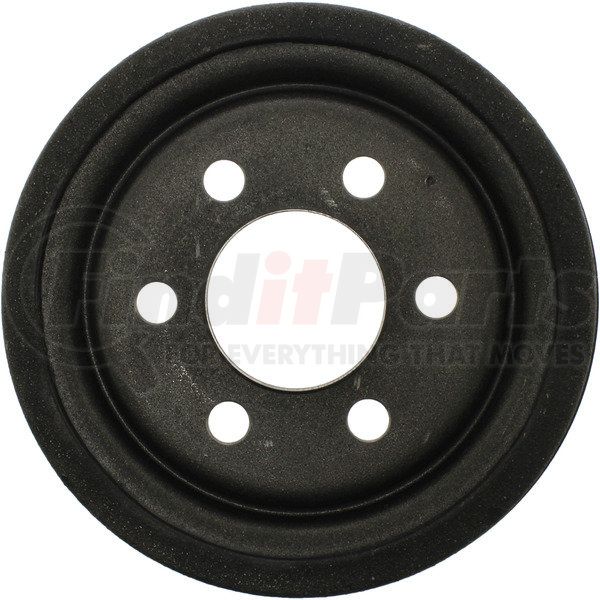

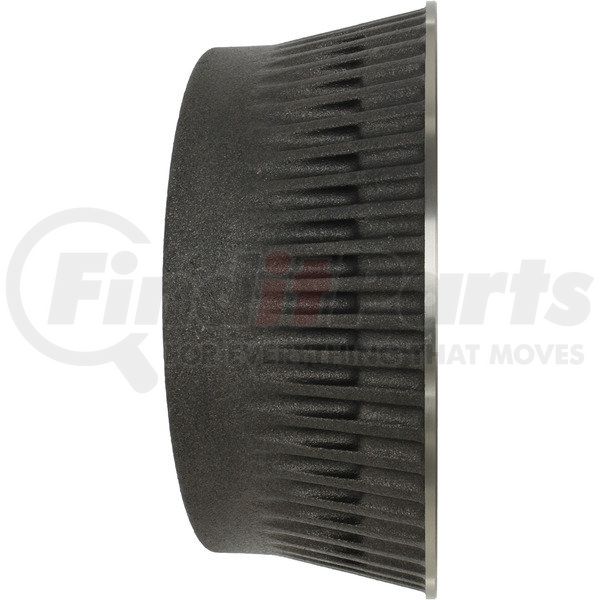

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.67022 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.318 |
| Weight [cntrc] Lbs | 16.100 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 71.882 |
| Hub Hole / Register [cntrc] In | 2.830 |
| Height [cntrc] Mm | 104.140 |
| Height [cntrc] In | 4.100 |
| Friction Surface Width [cntrc] Mm | 75.946 |
| Friction Surface Width [cntrc] In | 2.990 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.000 MM |
| Maximum Brake Diameter (Discard) | 9.055 IN |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 280.162 MM |
| Outside Diameter | 11.030 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 16.764 MM |
| Mounting Hole Diameter | 0.660 IN |
| Nominal Drum Diameter | 228.500 MM |
| Nominal Drum Diameter | 8.996 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890053217 |
CENTRIC 123.67022 Cross References
| Brand | Part Number |
|---|---|
| 2988, 102988, 52-125157, 52125157, BD125157 | |
| MAGMA PRODUCTS | PMU14077 |
| N/A | BD125157, 52-125157, 52125157, E127-72-027, E128-72-027, 8992, BD8992, 63 91 680, D91 680, 112988, 8992G, 52006290, 203921, 140597, PDR0597, 6401649, 440-1649, 728, AD8722, AD8722E, D9405, E12772027, E12872027, 87488, YH140597, X21744, 23092, BD1610, 2988, 2988R, 102988, 2988DGS, 78840022, 7840022, 8840022, 78-40022, 68375, 36540041 |
| PRONTO | BD8992 |
| RAYBESTOS | 2988, 2988R |
| WAGNER | BD125157 |
CENTRIC 123.67022 Fits Vehicles
- Dodge Dakota (1991-2002)
