(888) 312-8812 Login SignupCENTRIC 123.66014 C-Tek Standard Brake Drum
Tap to view 4 more
MSRP: $131.53
$12999
Save $1.54
Limited availability at this price!
In Stock
Get it by Thursday, Jul 23
CENTRIC 123.66014 Part Description
Manufacturer
Product Description

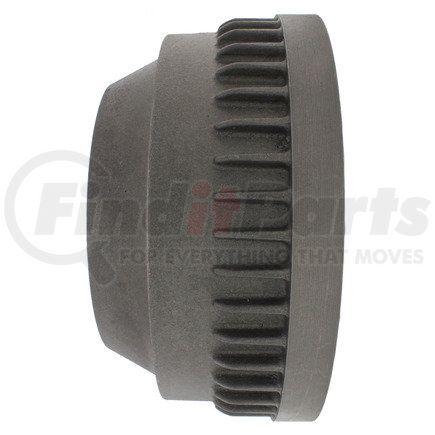

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.66014 Specifications
Product Attributes
| Weight [cntrc] Kgs | 17.045 |
| Weight [cntrc] Lbs | 37.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 117.602 |
| Hub Hole / Register [cntrc] In | 4.630 |
| Height [cntrc] Mm | 163.576 |
| Height [cntrc] In | 6.440 |
| Friction Surface Width [cntrc] Mm | 83.312 |
| Friction Surface Width [cntrc] In | 3.280 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 338.074 MM |
| Outside Diameter | 13.310 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 16.000 MM |
| Mounting Hole Diameter | 0.630 IN |
| Nominal Drum Diameter | 279.400 MM |
| Nominal Drum Diameter | 11.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890052975 |
CENTRIC 123.66014 Cross References
| Brand | Part Number |
|---|---|
| 1013, BD60724 | |
| N/A | BD60724, E128-71-019, E127-71-019, 8944, BD8944, 123.66014, 8944C, 8944CG, 14050301, 140450, PDR0450, 201441, 6401449, 817, AD8614, AD8614E, D2969, E8377, E12771019, E12871019, 87269, X21671, BD1474, 1013, 1013R, 1013DGS, 78844014, 8844014, 177336, 36547044 |
| PRONTO | BD8944 |
| RAYBESTOS | 1013, 1013R |
CENTRIC 123.66014 Fits Vehicles
- Chevrolet R20 Suburban (1987)
- GMC R2500 Suburban (1987)
- GMC R2500 (1987)
- GMC V2500 (1987)
- GMC V2500 Suburban (1987-1988)
- GMC P2500 (1981-1989)
- GMC K2500 Suburban (1981-1986)
- GMC K2500 (1981-1986)
- Chevrolet V20 (1987)
- GMC C2500 Suburban (1981-1986)
- GMC C2500 (1981-1986)
- Chevrolet V20 Suburban (1987)
- Chevrolet R20 (1987)
- Chevrolet P20 (1981-1989)
- Chevrolet K20 Suburban (1981-1986)
- Chevrolet K20 (1981-1986)
- Chevrolet C20 Suburban (1981-1986)
- Chevrolet C20 (1981-1986)
