Centric 202702-16-8S - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
| Make | Chevrolet, GMC |
| Model | C20, C20 Pickup, C20 Suburban, C25, C25 Suburban, C25/C2500 Pickup, C25/C2500 Suburban, C2500, C2500 Suburban, G30, G35, G3500, K20, K20 Pickup, K20 Suburban, K25, K25 Suburban, K25/K2500 Pickup, K25/K2500 Suburban, K2500, K2500 Suburban, P20, P20 Van, P25, P25/P2500 Van, P2500 |
| Year | 1972 |
Product Description

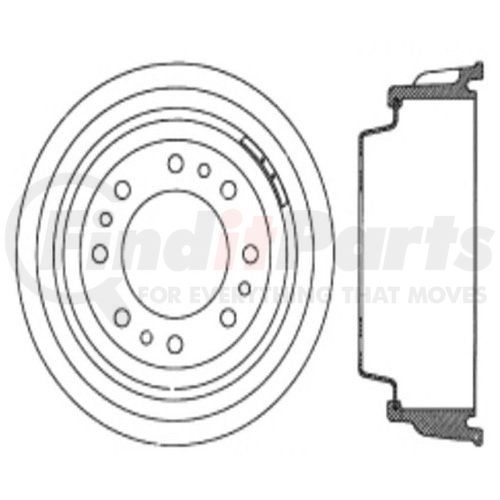

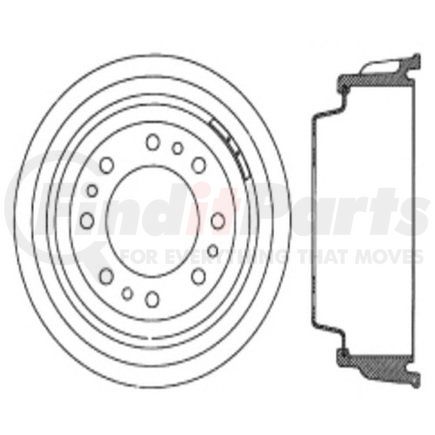

C-Tek Standard Brake Drum
Application Summary
1975 - 1980 Chevrolet C20, 1973 - 1974 Chevrolet C20 Pickup, 1973 - 1980 Chevrolet C20 Suburban, 1976 - 1980 Chevrolet G30, 1975 - 1980 Chevrolet K20, 1972 - 1974 Chevrolet K20 Pickup, 1972 - 1980 Chevrolet K20 Suburban, 1975 - 1980 Chevrolet P20, 1974 - 1974 Chevrolet P20 Van, 1975 - 1978 GMC C25, 1975 - 1978 GMC C25 Suburban, 1973 - 1974 GMC C25/C2500 Pickup, 1973 - 1974 GMC C25/C2500 Suburban, 1979 - 1980 GMC C2500, 1979 - 1980 GMC C2500 Suburban, 1976 - 1978 GMC G35, 1979 - 1980 GMC G3500, 1975 - 1978 GMC K25, 1975 - 1978 GMC K25 Suburban, 1972 - 1974 GMC K25/K2500 Pickup, 1972 - 1974 GMC K25/K2500 Suburban, 1979 - 1980 GMC K2500, 1979 - 1980 GMC K2500 Suburban, 1975 - 1978 GMC P25, 1974 - 1974 GMC P25/P2500 Van, 1979 - 1980 GMC P2500
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum

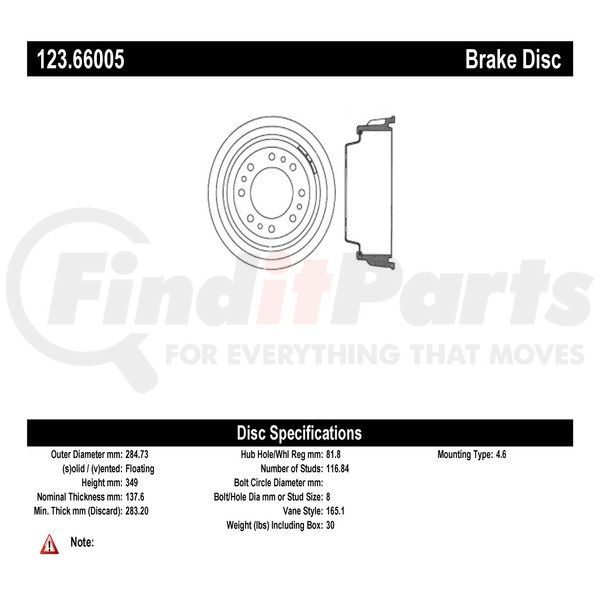

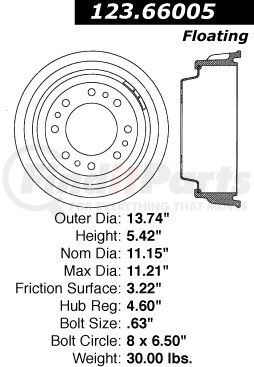

Product Attributes
| Bolt Hole Quantity | 8 |
| Outside Diameter | 349 MM |
| Mounting Hole Diameter | 0.626 IN |
| Maximum Brake Diameter (Discard) | 284.73 MM |
| Bolt Circle Diameter | 165.1 MM |
| Nominal Drum Diameter | 283.20 MM |
| Attribute ID (Type) | California Proposition 65 |
| Friction Surface inches | 3.22 |
| Friction Surface mm | 81.8 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Remanufactured Part | N |
| Refurbished Part | N |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890521112 |
CENTRIC 202702-16-8S Cross Reference
We have 4 alternatives for the 202702-16-8S by CENTRIC:
Fits Vehicles
- GMC P25/P2500 Van (1974)
- Chevrolet P20 Van (1974)
- Chevrolet C20 Pickup (1973-1974)
- GMC C25/C2500 Pickup (1973-1974)
- GMC K25/K2500 Suburban (1972-1974)
- GMC K25/K2500 Pickup (1972-1974)
- GMC C25/C2500 Suburban (1973-1974)
- Chevrolet K20 Pickup (1972-1974)
- GMC P2500 (1979-1980)
- GMC P25 (1975-1978)
- GMC K2500 Suburban (1979-1980)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1980)
- GMC K25 (1975-1978)
- GMC G3500 (1979-1980)
- GMC G35 (1976-1978)
- GMC C2500 Suburban (1979-1980)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1980)
- GMC C25 (1975-1978)
- Chevrolet P20 (1975-1980)
- Chevrolet K20 Suburban (1972-1980)
- Chevrolet K20 (1975-1980)
- Chevrolet G30 (1976-1980)
- Chevrolet C20 Suburban (1973-1980)
- Chevrolet C20 (1975-1980)
