(888) 312-8812 Login SignupCENTRIC 123.45012 C-Tek Standard Brake Drum
*Representative image - actual part not displayed
$50.56
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.45012 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity

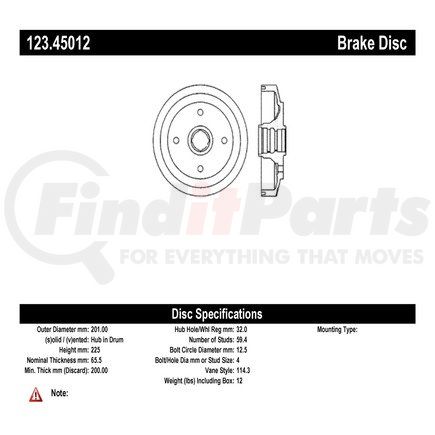

CENTRIC 123.45012 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.455 |
| Weight [cntrc] Lbs | 12.000 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 59.400 |
| Hub Hole / Register [cntrc] In | 2.339 |
| Height [cntrc] Mm | 65.500 |
| Height [cntrc] In | 2.579 |
| Friction Surface Width [cntrc] Mm | 32.000 |
| Friction Surface Width [cntrc] In | 1.260 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 225.000 MM |
| Outside Diameter | 8.858 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.500 MM |
| Mounting Hole Diameter | 0.492 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890140566 |
CENTRIC 123.45012 Cross References
| Brand | Part Number |
|---|---|
| 122.45012, F1EZ14C724A | |
| N/A | BD61795, 0832205, 0832284, 3562, BD3562, 123.45012, 63 74 240, B09226251, 116621, 3562G, 1031, BO9226251, E7GZ1126B, 140528, PDR0528, 212091, 6401557, 692, JBD166, JBD166E, D9301, 100920, 87435, 21074, X30746, BD1613, 109435, 9435, 9435R, 9435DGS, DB4133, 8814012, 36580011 |
| RAYBESTOS | 9435, 9435R |
CENTRIC 123.45012 Fits Vehicles
- Mazda 323 (1986-1989)
- Mercury Tracer (1987-1989)
