CENTRIC 123.44041 Part Description
Manufacturer
Product Description

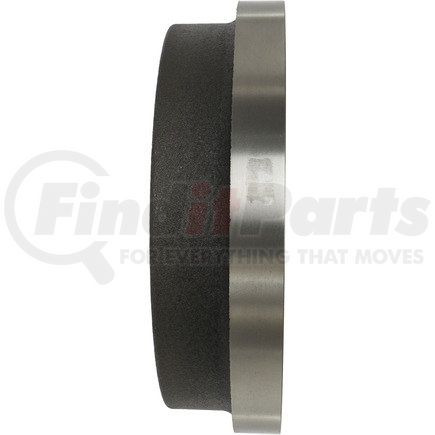

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.44041 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 5.909 |
| Weight [cntrc] Lbs | 13.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 61.940 |
| Hub Hole / Register [cntrc] In | 2.439 |
| Height [cntrc] Mm | 70.620 |
| Height [cntrc] In | 2.780 |
| Friction Surface Width [cntrc] Mm | 54.020 |
| Friction Surface Width [cntrc] In | 2.127 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.600 MM |
| Maximum Brake Diameter (Discard) | 9.079 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 282.00 MM |
| Outside Diameter | 11.102 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.450 MM |
| Mounting Hole Diameter | 0.569 IN |
| Nominal Drum Diameter | 228.000 MM |
| Nominal Drum Diameter | 8.976 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890241560 |
CENTRIC 123.44041 Cross References
CENTRIC 123.44041 Fits Vehicles
- Toyota Camry (2002-2006)
- Toyota Solara (2002-2003)
