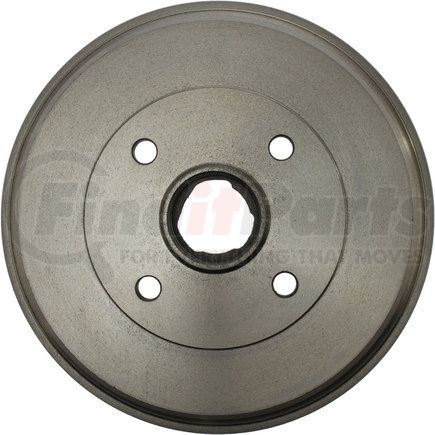

Centric 123.40008 - Standard Brake Drum
$2499
MSRP: $36.07
Save: $11.08
Limited Availability
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Standard Brake Drum
Product Attributes
| Weight [cntrc] Kgs | 4.091 |
| Weight [cntrc] Lbs | 9.000 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 55.900 |
| Hub Hole / Register [cntrc] In | 2.201 |
| Height [cntrc] Mm | 72.000 |
| Height [cntrc] In | 2.835 |
| Friction Surface Width [cntrc] Mm | 42.500 |
| Friction Surface Width [cntrc] In | 1.673 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 240.000 MM |
| Outside Diameter | 9.449 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 11.900 MM |
| Mounting Hole Diameter | 0.469 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Part Interchanges
CENTRIC 123.40008 Cross Reference
We have 4 alternatives for the 123.40008 by CENTRIC:
Fits Vehicles
- Honda Prelude (1983)
- Honda Accord (1982-1985)
